Release Info
| Catalog ID | HVC-UM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 23, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

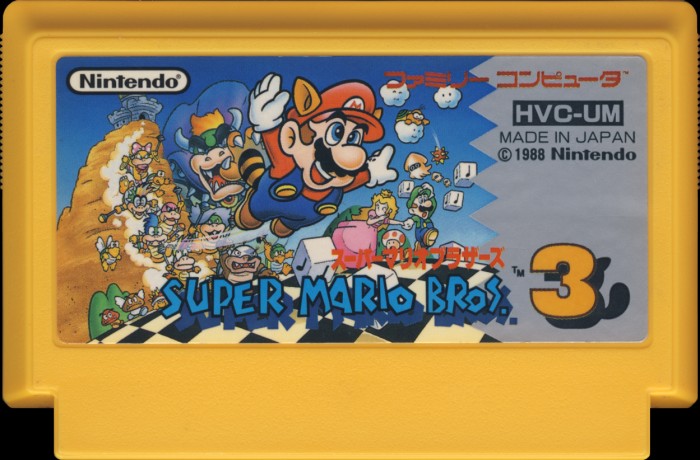

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-UM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

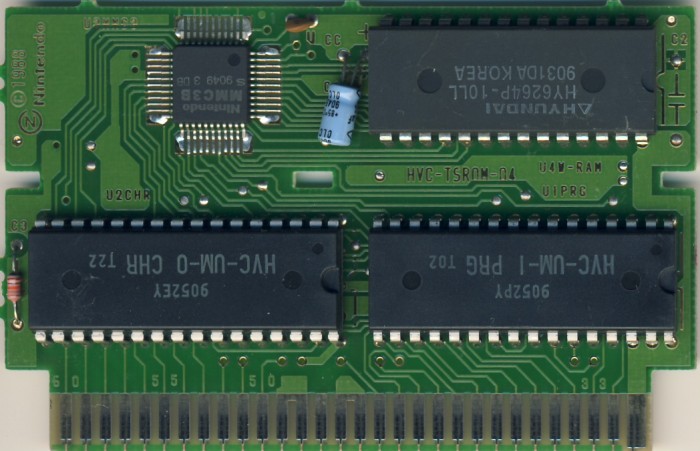

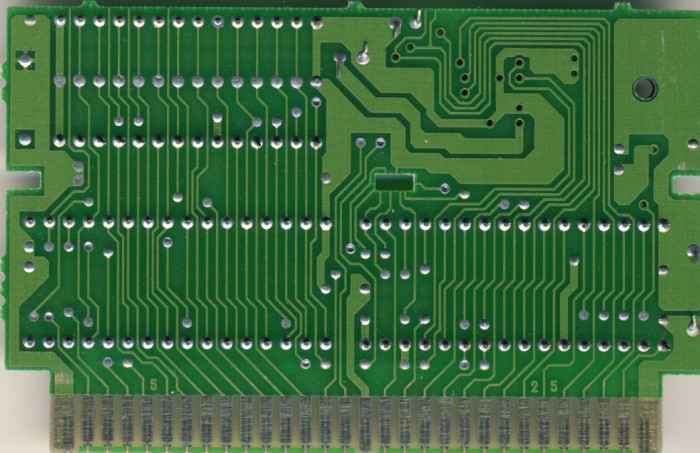

PCB Properties
| Name | HVC-TSROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8841 - 9114 (8) |
| Est First Run | October 1988 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-UM-1 PRG | 256 KB | E386DA54 | 7 |
| CHR0 | HVC-UM-0 CHR | 128 KB | A0AE2B4B | 8 |
| N/A | ROMs Combined | 384 KB | 52E2B5E0 | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 9052 PY | 9052 | |
| U2 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9052 EY | 9052 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9049 3 DB | 9049 | |
| U4 W-RAM | Hyundai | HY6264P-10LL | SRAM 8 KB | DIP-28 | 9031 DA | 9031 |
