Release Info
| Catalog ID | HVC-GF |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 1, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

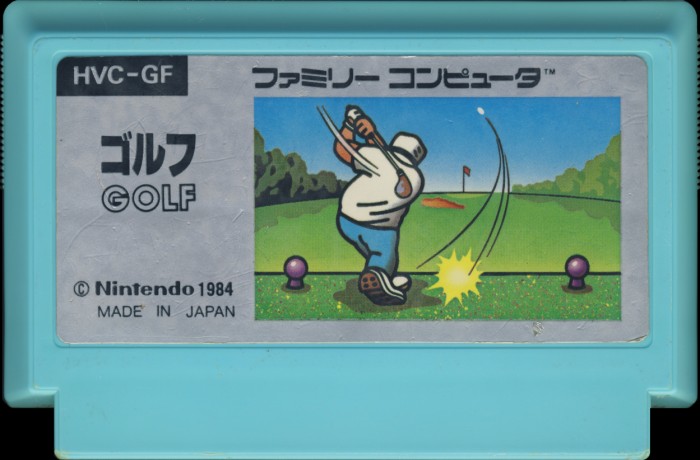

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Cyan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-GF |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 01 |

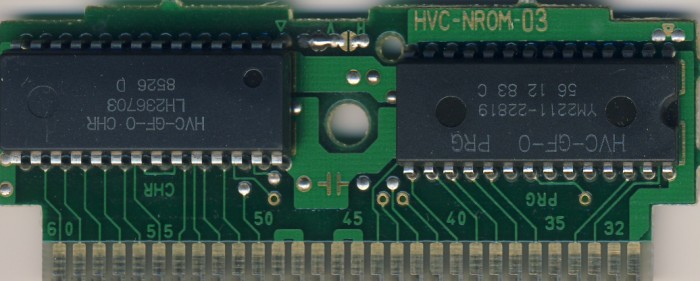

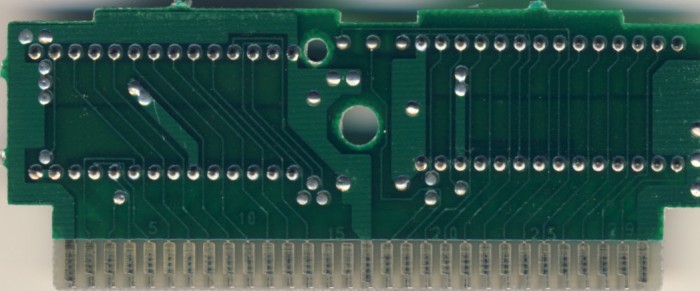

PCB Properties
| Name | HVC-NROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8419 - 8618 (7) |
| Est First Run | May 1984 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-GF-0 PRG | 16 KB | 9C7E6421 | 9 |
| CHR0 | HVC-GF-0 CHR | 8 KB | 7DFA75A8 | 14 |
| N/A | ROMs Combined | 24 KB | 5C9063E0 | 9 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Yamaha | YM2211 22819 | Mask ROM 16 KB | DIP-28 | 56 12 83 C | 8524 | |
| CHR | Sharp | LH2367 03 | Mask ROM 8 KB | DIP-28 | 8526 D | 8526 |
