Release Info
| Catalog ID | TFS-HS |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 18, 1986 |
| Publisher | Toemiland |
| Developer | T & E Soft |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Off White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TFS-HS |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

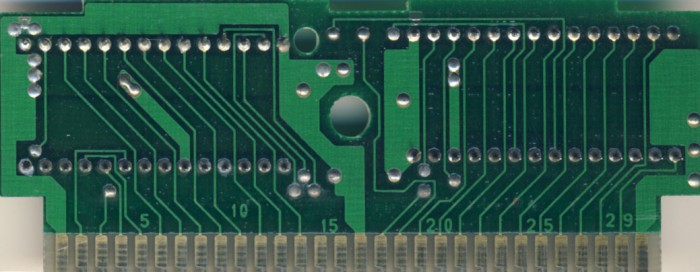

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8608 - 8614 (8) |
| Est First Run | February 1986 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TFS-HS-0 PRG | 32 KB | 497E9336 | 8 |
| CHR0 | TFS-HS-0 CHR | 8 KB | 4216123F | 8 |
| N/A | ROMs Combined | 40 KB | 8575A0CB | 8 |

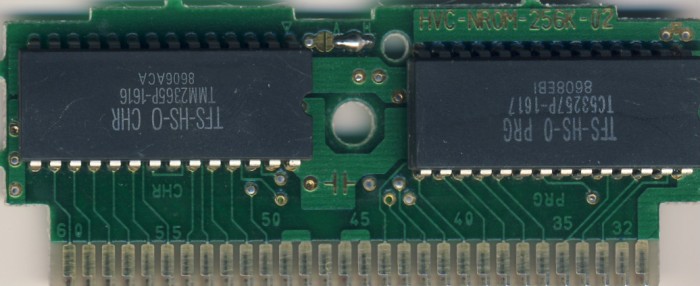

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Toshiba | TC53257P 1617 | Mask ROM 32 KB | DIP-28 | 8608 EBI | 8608 | |
| CHR | Toshiba | TMM2365P 1616 | Mask ROM 8 KB | DIP-28 | 8606 ACA | 8606 |
