Release Info
| Catalog ID | HVC-DH |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 21, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Zapper Light Gun |

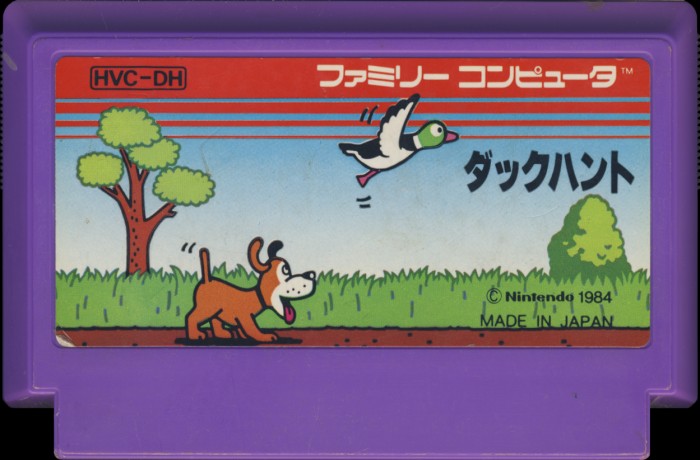

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Violet |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-DH |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 04 |

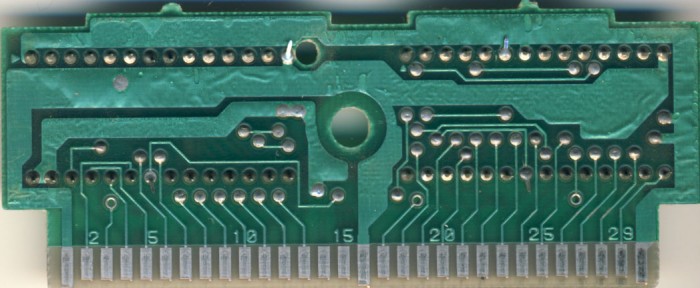

PCB Properties
| Name | HVC-RROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8427 - 8428 (2) |
| Est First Run | July 1984 |
| PCB Class | HVC-RROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-DH-0 PRG | 16 KB | 90CA616D | 6 |
| CHR0 | HVC-DH-0 CHR | 8 KB | 4E049E03 | 6 |
| N/A | ROMs Combined | 24 KB | 24598791 | 6 |

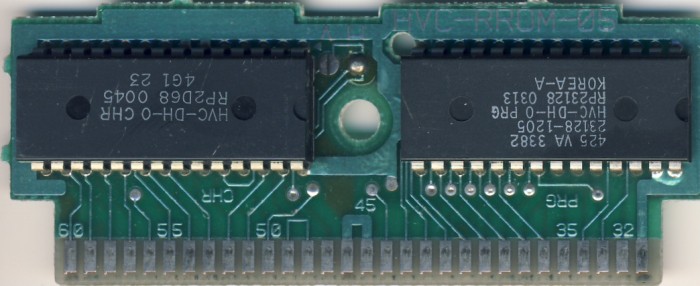

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | VTI | 23128 1205 | Mask ROM 16 KB | DIP-28 | 425 VA 3382 | 8425 | RP23128 0313 |
| CHR | Ricoh | RP2D68 0045 | Mask ROM 8 KB | DIP-28 | 4G1 23 | 8427 |
