Release Info
| Catalog ID | HFC-MI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 6, 1987 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |

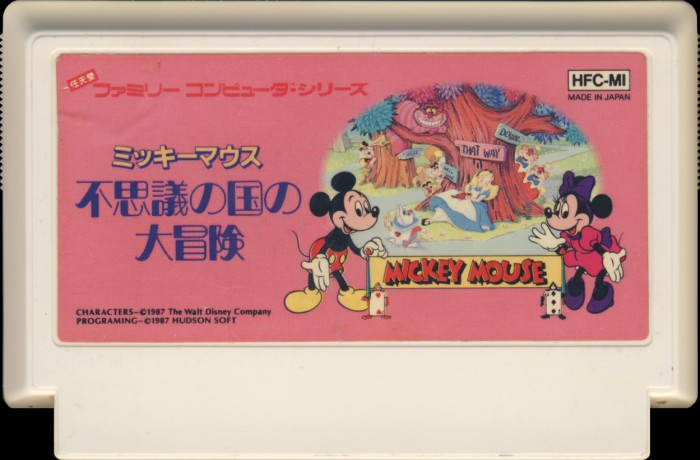

| Front Label ID | HFC-MI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17² |
PCB Properties

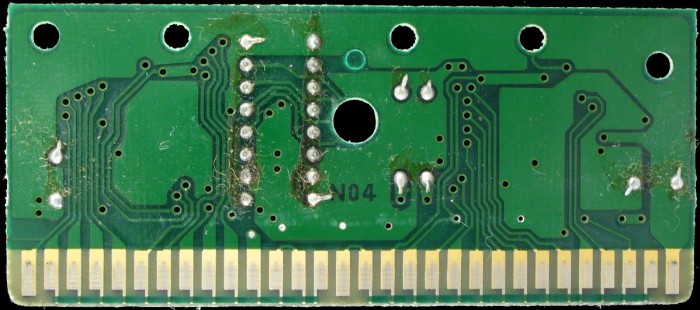

| Name | N04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 8646 - 8708 (8) |
| Est First Run | November 1986 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 706C3BD1 | 8 |
| CHR0 | Not Present | 32 KB | F0AB71AE | 8 |
| N/A | ROMs Combined | 64 KB | 9E4701CB | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

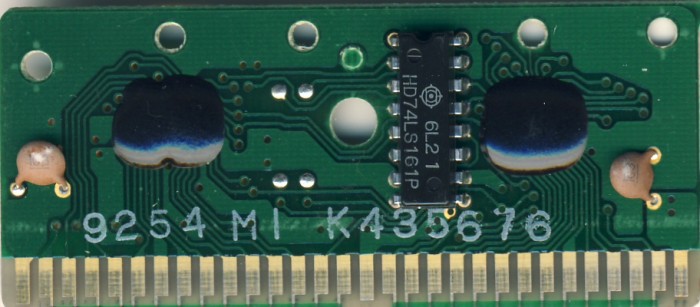

| PCB | _UnkMfg17-2 | MI | Chip-on-Board PCB | PCB | 9254 K435676 | ||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| Hitachi | HD74LS161P | 74-161 Series | DIP-16 | 6L2 1 | 8646 |
