Release Info
| Catalog ID | HVC-FW |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 12, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

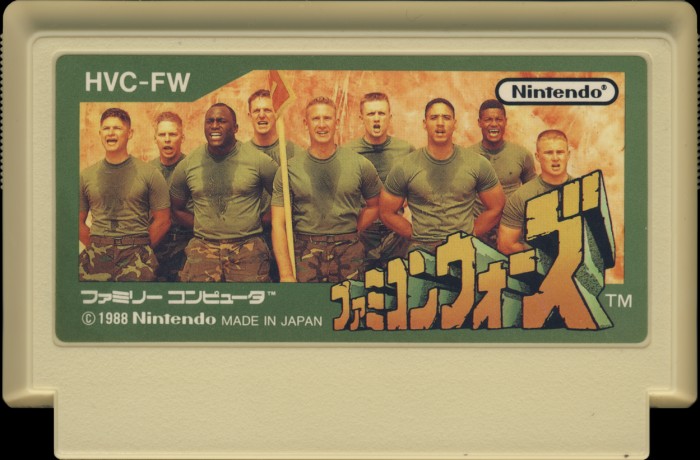

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Khaki |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-FW |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

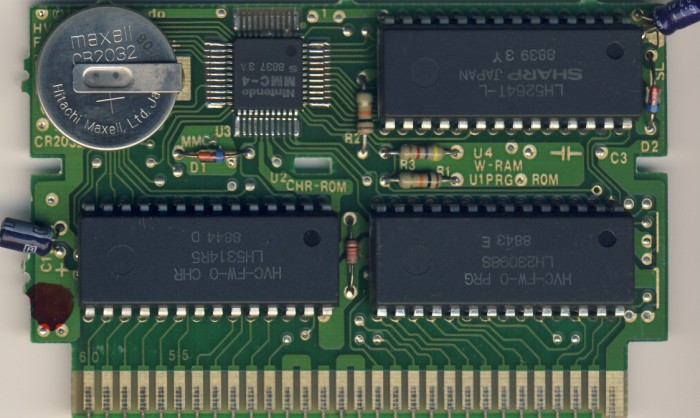

PCB Properties
| Name | HVC-FJROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8844 - 8844 (2) |
| Est First Run | November 1988 |
| PCB Class | HVC-FJROM |
| iNES Mapper | 10 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-FW-0 PRG | 128 KB | C9CCE8F2 | 2 |
| CHR0 | HVC-FW-0 CHR | 64 KB | C57D73DC | 2 |
| N/A | ROMs Combined | 192 KB | 9B547E05 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | Sharp | LH2309 8S | Mask ROM 128 KB | DIP-28 | 8843 E | 8843 | |
| U2 CHR-ROM | Sharp | LH5314 R5 | Mask ROM 64 KB | DIP-28 | 8844 D | 8844 | |
| U3 MMC4 | Sharp | MMC-4 | Nintendo MMC4 | TQFP-44 | 8837 3 A | 8837 | |
| U4 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8839 3 Y | 8839 |
