Release Info
| Catalog ID | NES-XE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1988 |
| Publisher | Sunsoft |
| Developer | Midway |
| Players | 2 |
| Peripherals | NES Controller |

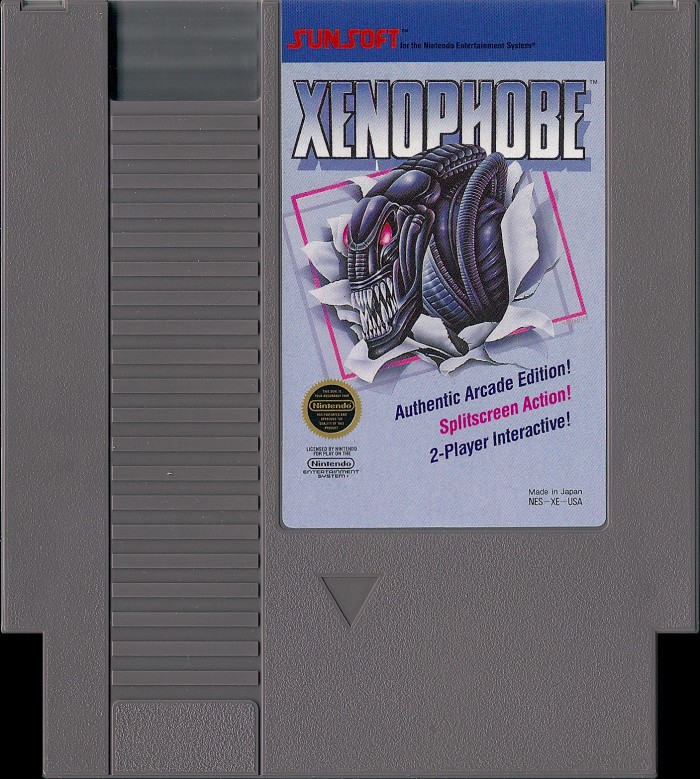

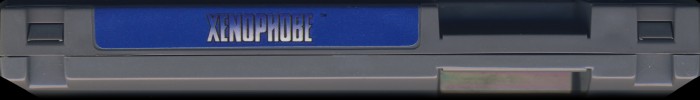

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XE-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 19 |

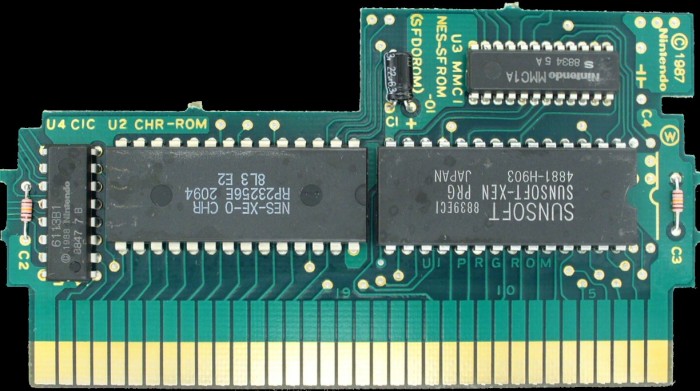

PCB Properties
| Name | NES-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8847 - 8848 (2) |
| Est First Run | November 1988 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SUNSOFT-XEN PRG | 128 KB | 9ECA0941 | 2 |
| CHR0 | NES-XE-0 CHR | 32 KB | AA00B5FA | 2 |
| N/A | ROMs Combined | 160 KB | 711896B8 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | Toshiba | 4881 H903 | Mask ROM 128 KB | DIP-28 | 8839 ECI | 8839 | |
| U2 CHR-ROM | Ricoh | RP23256E 2094 | Mask ROM 32 KB | DIP-28 | 8L3 E2 | 8847 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8834 5 A | 8834 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8847 7 B | 8847 |
