Release Info
| Catalog ID |
PNF-UL (R59V5910) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
October 9, 1987 |
| Publisher |
Pony Canyon |
| Developer |
Origin Systems |
| Players |
1 |
| Peripherals |
Famicom Controller |

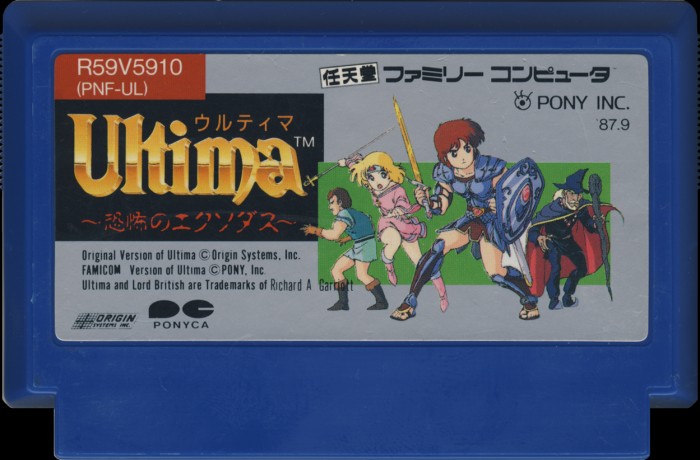

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Dark Blue |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
PNF-UL |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SNROM-04 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8738 - 8738 (2) |
| Est First Run |
September 1987 |
| PCB Class |
HVC-SNROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
8 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PNF-UL-0 PRG |
256 KB |
250F7913 |
2 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG |
NEC |
UPD23C2013
|
Mask ROM
256 KB
|
DIP-32 |
8735
KY
|
8735 |
|
| CHR |
Sony |
CXK5864PN-15L
|
SRAM
8 KB
|
DIP-28 |
7G
26
|
8727 |
|
|
Sharp |
MMC1
|
Nintendo MMC1
|
DIP-24 |
8738
A
|
8738 |
|
|
Sony |
CXK5864PN-15LL
|
SRAM
8 KB
|
DIP-28 |
7G
86
|
8727 |
|
Additional Images
PCB Images
