Release Info
| Catalog ID | NES-PM-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | April 15, 1988 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

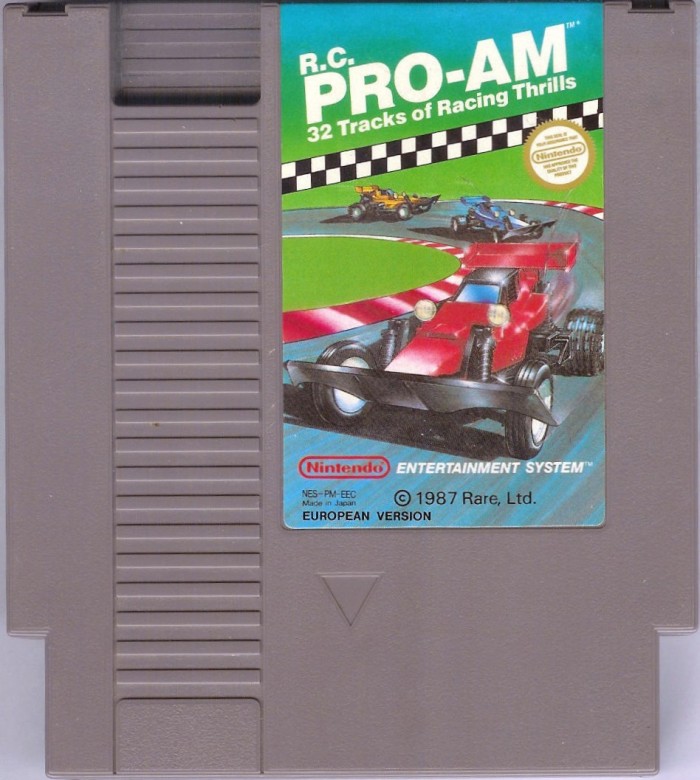

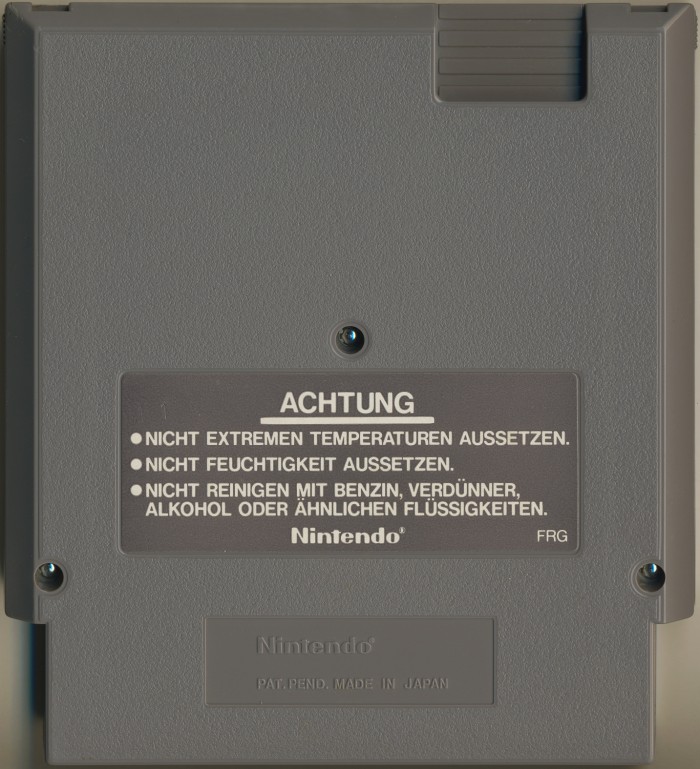

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PM-EEC |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-AN1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8811 - 8832 (4) |
| Est First Run | March 1988 |
| PCB Class | NES-AN1ROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-PM-0 PRG | 64 KB | E5A972BE | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5313 T1 | Mask ROM 64 KB | DIP-28 | 8821 E | 8821 | ||
| CHR-ROM | Sanyo | LC3664N-12 | SRAM 8 KB | DIP-28 | 8B 8 | 8805 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8744 A | 8744 | |
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8821 CA | 8821 | ||
| Panasonic | MN74HC02 | 74-02 Series | DIP-14 | 8? | 8803 |
