Release Info
| Catalog ID | NAM-SX-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 19, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Gold |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

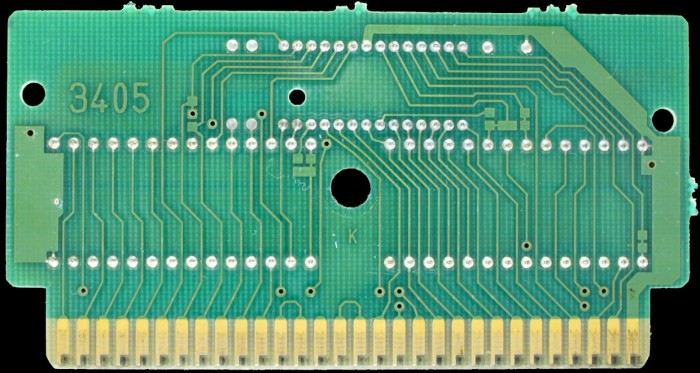

PCB Properties
| Name | 3405 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8634 - 8637 (2) |
| Est First Run | August 1986 |
| PCB Class | NAMCOT-3405 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT SX PRG | 128 KB | 4D21172C | 2 |
| CHR0 | NAMCOTSXCH | 32 KB | E27C7434 | 2 |
| N/A | ROMs Combined | 160 KB | 7BB5664F | 2 |

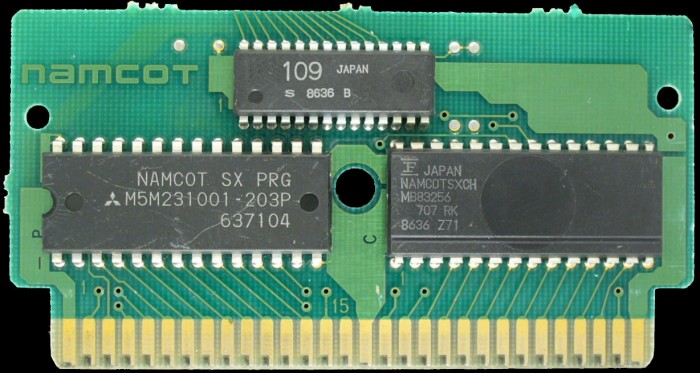

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M231001 203P | Mask ROM 128 KB | DIP-28 | 637 104 | 8637 | |
| CH | Fujitsu | MB83256 707 RK | Mask ROM 32 KB | DIP-28 | 8636 Z71 | 8636 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8636 B | 8636 |
