Release Info
| Catalog ID | NES-ME-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1988 |
| Publisher | Ultra Games |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

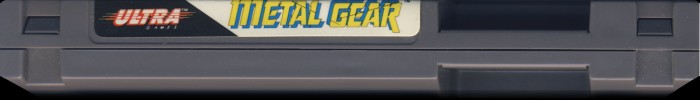

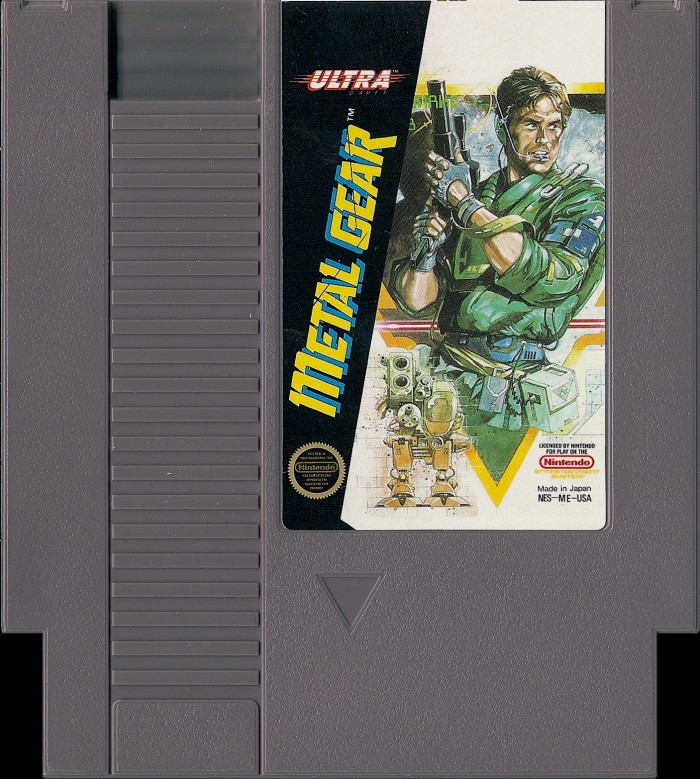

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ME-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 24 |
PCB Properties
| Name | 351320 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8847 - 8918 (4) |
| Est First Run | November 1988 |
| PCB Class | KONAMI-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RD009-1 | 128 KB | 817431EC | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Panasonic | MN231001 | Mask ROM 128 KB | DIP-28 | 8 B3 | 8842 | ||
| Fujitsu | 052701 | SRAM 8 KB | SDIP-28 | 8843 KR18 | 8843 | ||
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8848 5 A | 8848 | ||
| Motorola | MC74HC161 | 74-161 Series | DIP-16 | 8829 N A | 8829 | ||
| Motorola | MC74HC32 | 74-32 Series | DIP-14 | 8835 N A | 8835 |
