Release Info
| Catalog ID | NAM-NSC-4900-15 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 20, 1986 |
| Publisher | Namco |
| Developer | Culture Brain |
| Players | 2 |
| Peripherals | Famicom Controller |

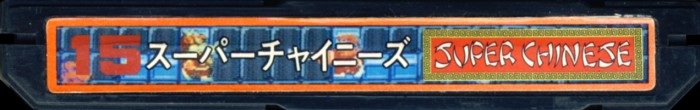

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 15 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

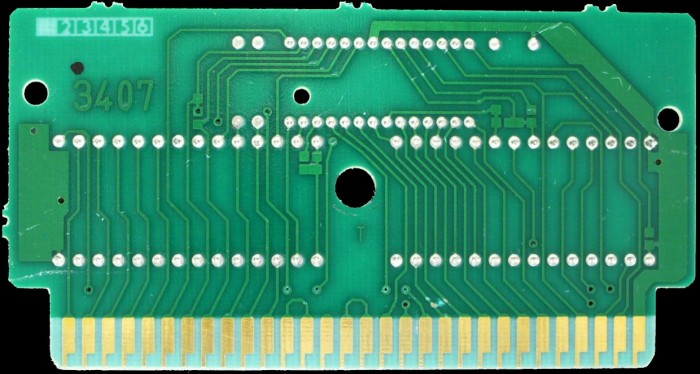

PCB Properties
| Name | 3407 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8619 - 8619 (2) |
| Est First Run | May 1986 |
| PCB Class | NAMCOT-3407 |
| iNES Mapper | 206 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 108 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT SC PRG | 32 KB | 51C7C66A | 2 |
| CHR0 | NAMCOT SC CHR | 16 KB | F85AC7E5 | 2 |
| N/A | ROMs Combined | 48 KB | 711C2B0E | 2 |

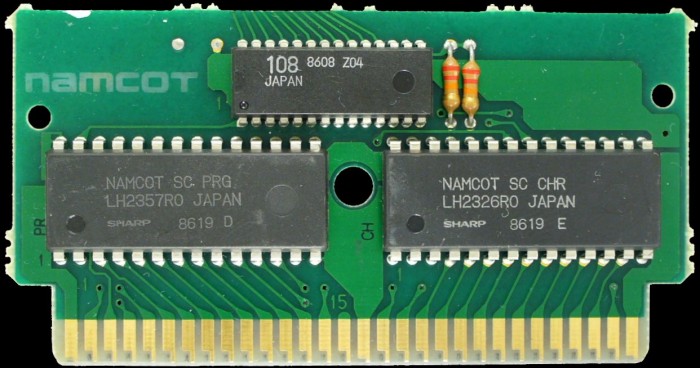

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sharp | LH2357 R0 | Mask ROM 32 KB | DIP-28 | 8619 D | 8619 | |
| CH | Sharp | LH2326 R0 | Mask ROM 16 KB | DIP-28 | 8619 E | 8619 | |
| Fujitsu | 108 | Namcot 108 | DIP-28 | 8608 Z04 | 8608 |
