Release Info
| Catalog ID | NAM-FS87-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 22, 1987 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

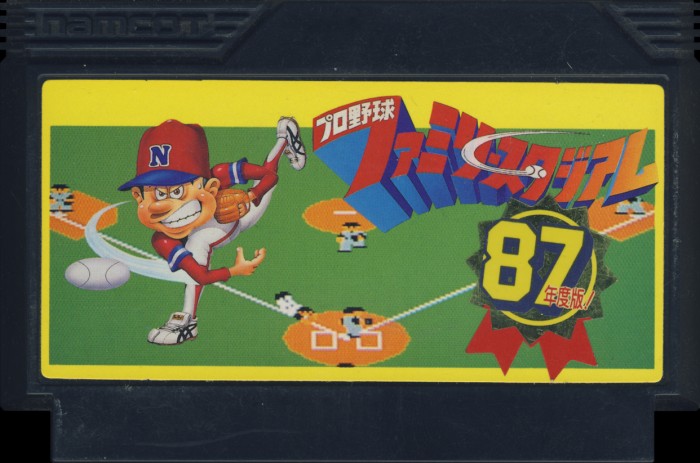

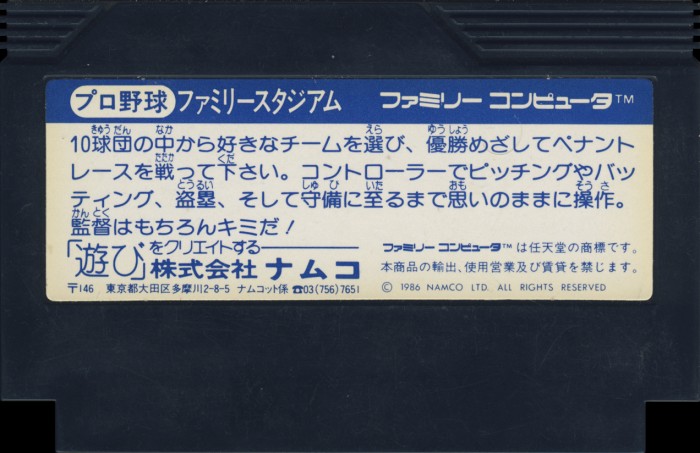

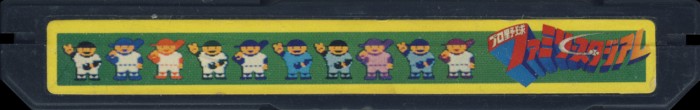

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

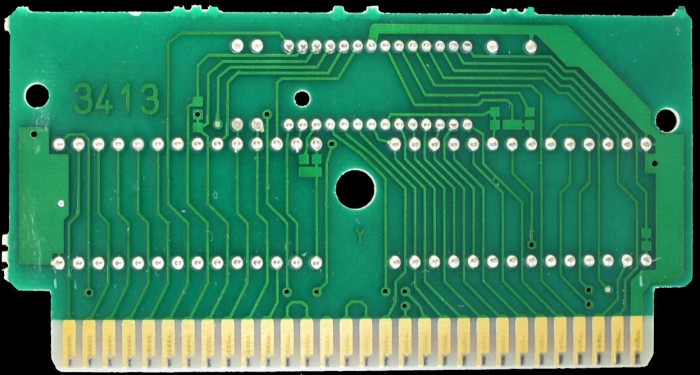

PCB Properties
| Name | 3413 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8746 - 8813 (10) |
| Est First Run | November 1987 |
| PCB Class | NAMCOT-3413 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOTFS8P | 64 KB | E8B7C767 | 10 |
| CHR0 | NAMCOT FS87 CHR | 32 KB | FC1A0E4E | 10 |
| N/A | ROMs Combined | 96 KB | 1300A8B7 | 10 |

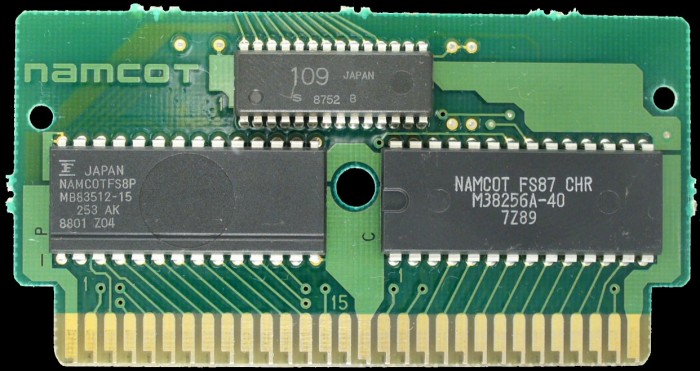

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Fujitsu | MB83512-15 253 AK | Mask ROM 64 KB | DIP-28 | 8801 Z04 | 8801 | |
| C | OKI | M38256A 40 | Mask ROM 32 KB | DIP-28 | 7Z 89 | 8749 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8752 B | 8752 |
