Release Info
| Catalog ID | KON-RC857 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 3, 1992 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

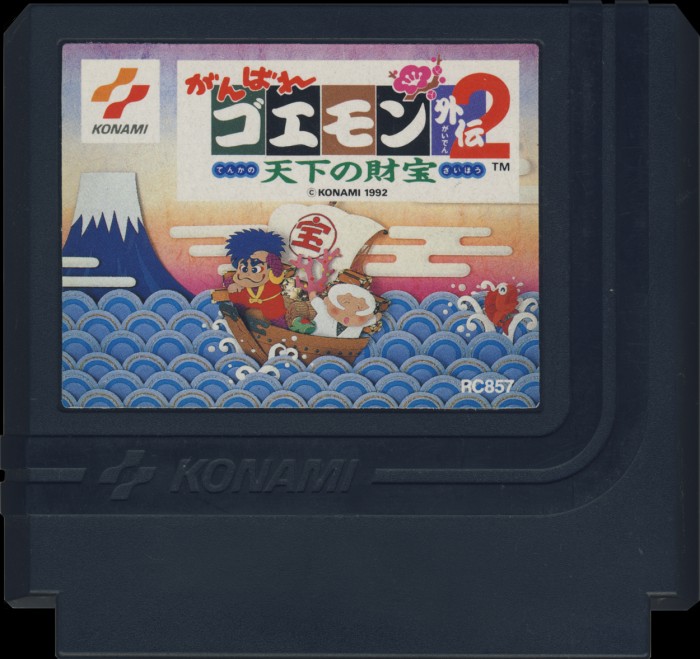

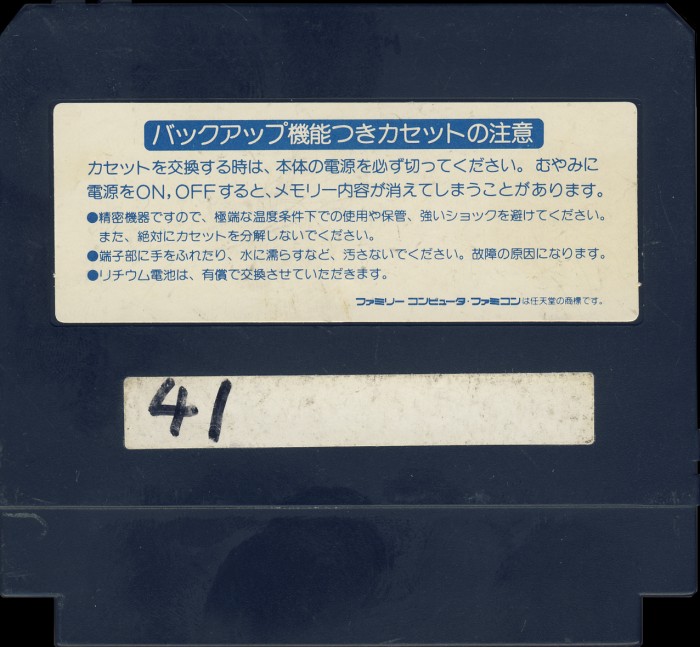

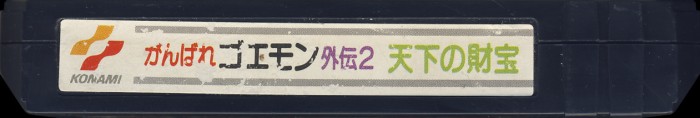

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | RC857 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

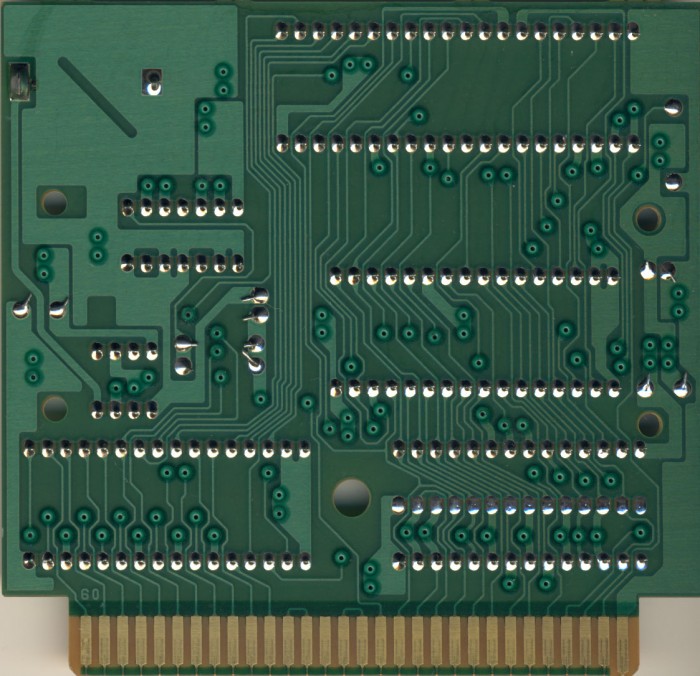

PCB Properties
| Name | 352889 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9147 - 9148 (2) |
| Est First Run | November 1991 |
| PCB Class | KONAMI-VRC-4 |
| iNES Mapper | 21 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx20, MM1026, VRC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC857J00P | 256 KB | 7CC4778C | 2 |
| CHR0 | RC857J00C | 256 KB | D6E82485 | 2 |
| N/A | ROMs Combined | 512 KB | 286FCD20 | 2 |

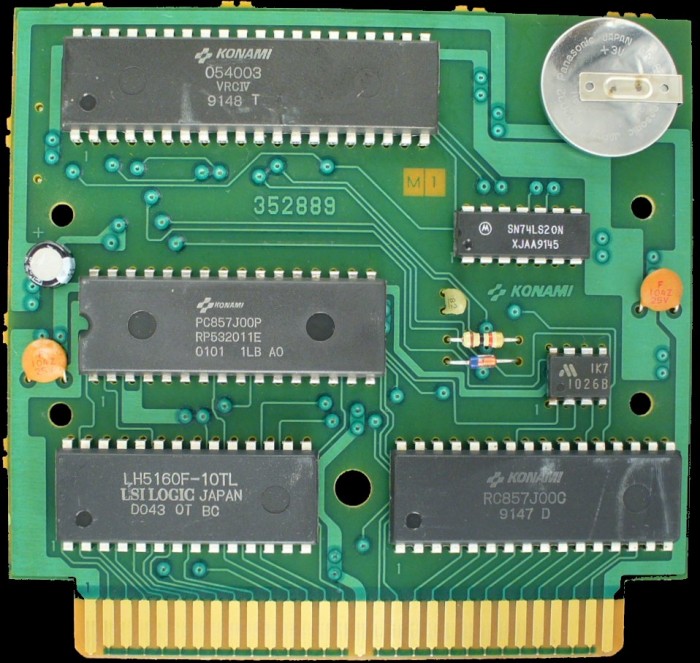

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP532011E 0101 | Mask ROM 256 KB | DIP-32 | 1LB A0 | 9144 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9147 D | 9147 | ||
| LSI Logic | LH5160F-10TL | SRAM 8 KB | DIP-28 | 043 D | 9043 | ||
| Sharp | 054003 VRC IV | Konami VRC IV | DIP-40 | 9148 T | 9148 | ||
| Motorola | SN74LS20N | 74-20 Series | DIP-14 | 9145 XJAA | 9145 | ||
| Mitsumi | 1026B | MM1026 | DIP-8 | 1K 7 | 9144 |
