Release Info
| Catalog ID | KON-RC833 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 4, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

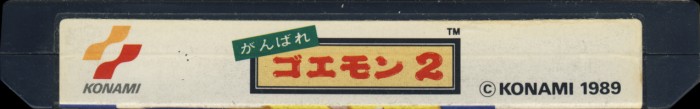

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |

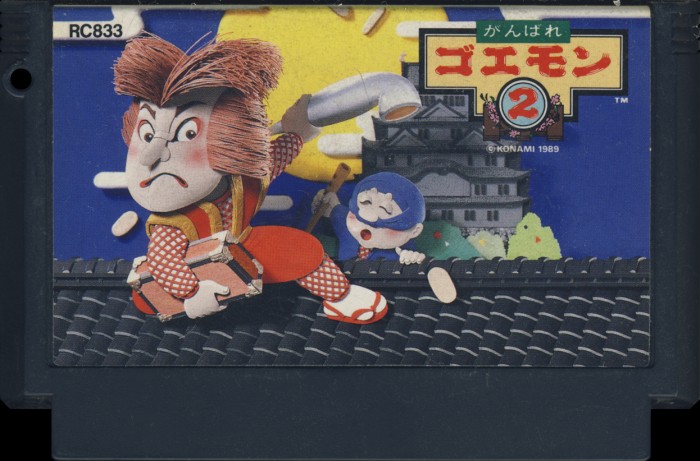

| Front Label ID | RC833 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

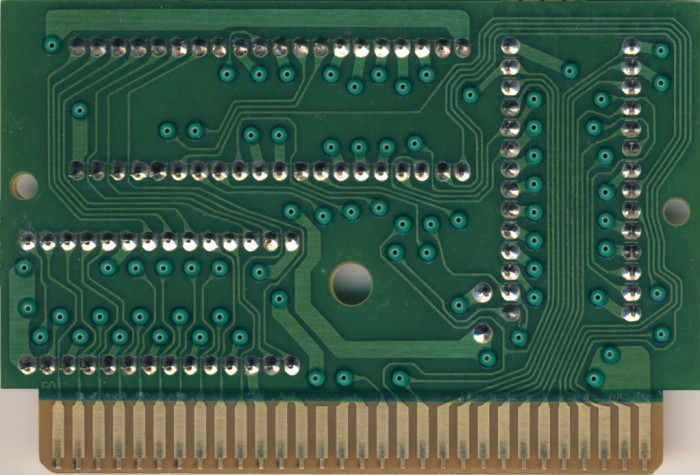

PCB Properties
| Name | 350926 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8853 - 8902 (2) |
| Est First Run | January 1989 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 23 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC833J0P | 128 KB | 112140A4 | 2 |
| CHR0 | RC833J0C | 128 KB | B0C3CE2D | 2 |
| N/A | ROMs Combined | 256 KB | 0CC9FFEC | 2 |

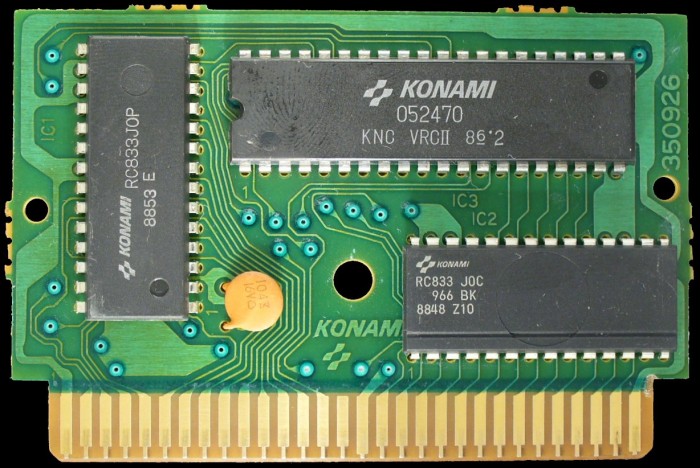

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8853 E | 8853 | |
| IC2 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8848 Z10 | 8848 | |
| IC3 | Panasonic | 052470 VRC II KNC | Konami VRC II | DIP-40 | 8 | 8825 |
