Release Info
| Catalog ID | KON-RC801 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 11, 1985 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

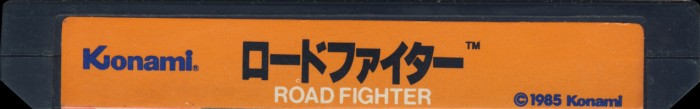

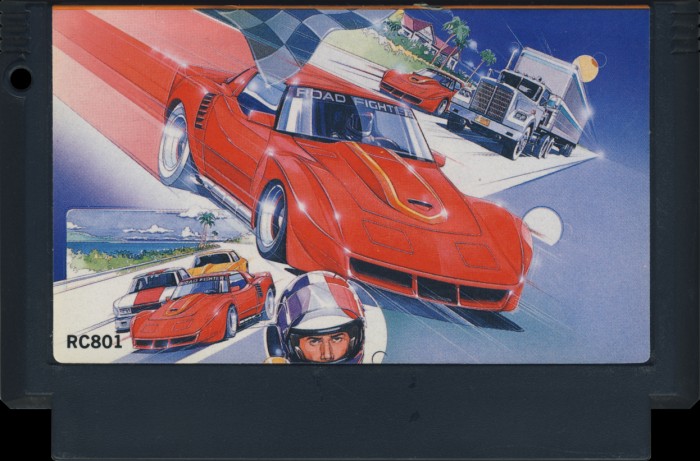

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC801 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

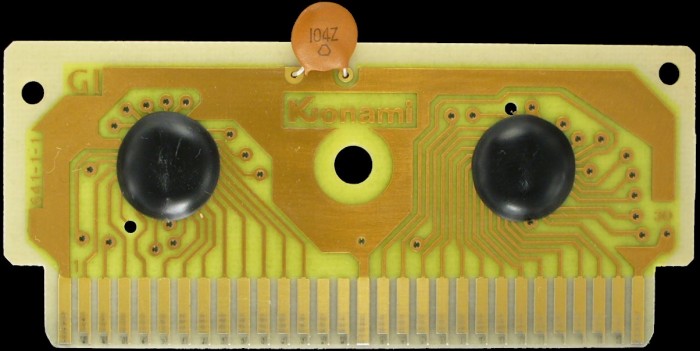

PCB Properties
| Name | 641-1-1 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | GI |
| Mfg Range | 8520 - 8523 (3) |
| Est First Run | May 1985 |
| PCB Class | KONAMI-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | F2A99DB1 | 3 |
| CHR0 | Not Present | 8 KB | 889F0424 | 3 |
| N/A | ROMs Combined | 24 KB | 7EE625EB | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

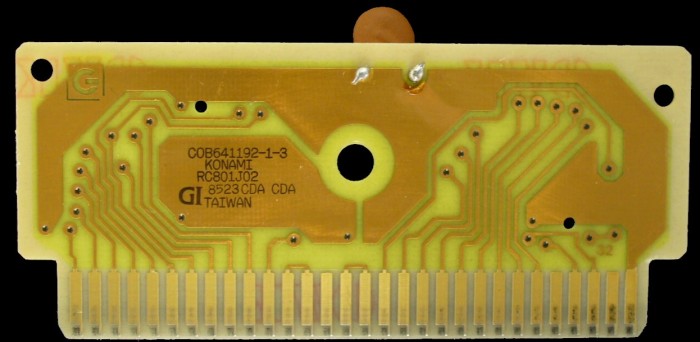

| PCB | General Instrument | RC801J02 | Chip-on-Board PCB | PCB | 8523 CDA | 8523 | COB641192-1-3 |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
