Release Info
| Catalog ID | KON-RC809 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 21, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

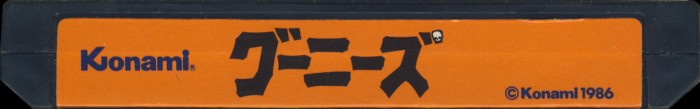

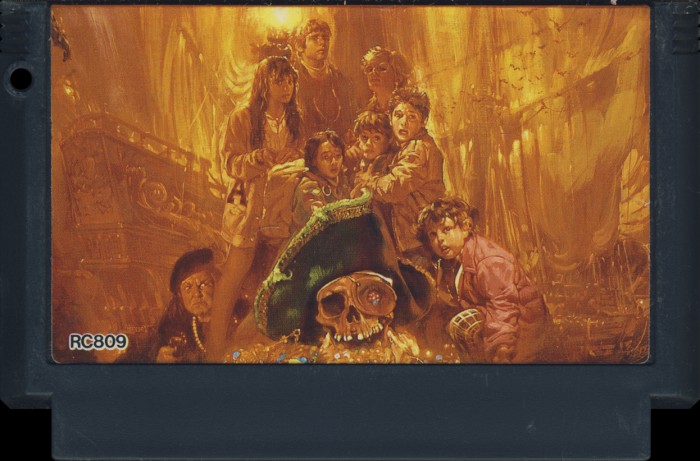

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC809 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

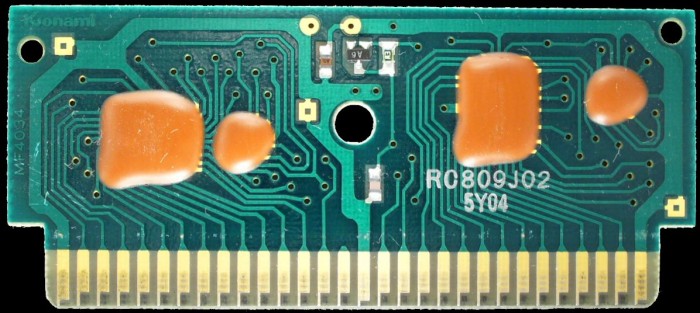

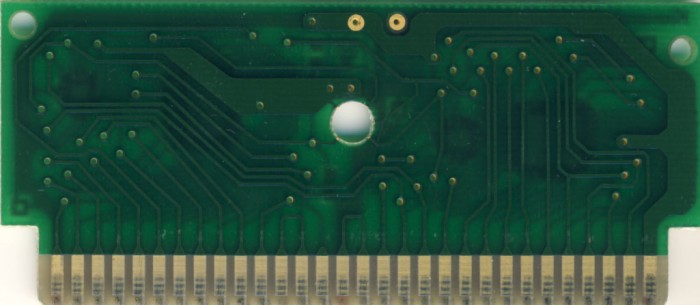

PCB Properties
| Name | MF4034 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Mitsubishi |
| Mfg Range | 8544 - 8606 (6) |
| Est First Run | November 1985 |
| PCB Class | KONAMI-74*139/74 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | EFEB0C34 | 6 |
| CHR0 | Not Present | 16 KB | 0F9C7F49 | 6 |
| N/A | ROMs Combined | 48 KB | E6DF6616 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Mitsubishi | RC809J02 | Chip-on-Board PCB | PCB | 5Y 04 | 8544 | |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP74139 | 74-139 Series | EPOXY | ||||
| __Unknown | EP7474 | 74-74 Series | EPOXY |
