Release Info
| Catalog ID | TFC-AK-6800-21 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 24, 1988 |
| Publisher | Taito |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

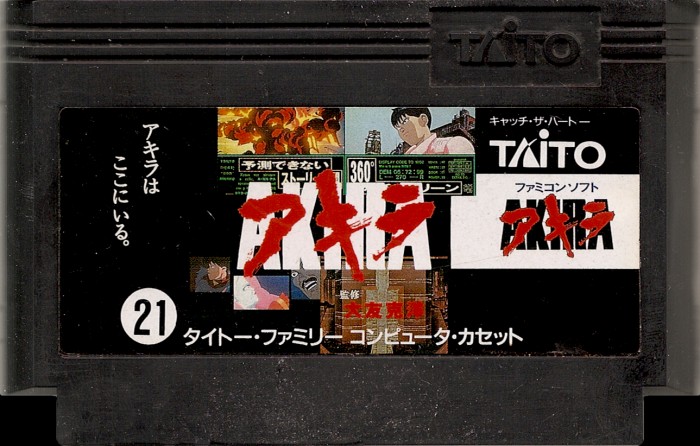

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 2 / 2 Screws |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | AKIRA-A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8849 - 8849 (2) |
| Est First Run | December 1988 |
| PCB Class | TAITO-TC0190FMC |
| iNES Mapper | 33 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | CE90983A | 2 |
| CHR0 | Not Present | 128 KB | 765EE887 | 2 |
| CHR1 | Not Present | 128 KB | 8F31C807 | 2 |
| N/A | ROMs Combined | 384 KB | 8A7D0ABE | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2307 01 | Mask ROM 128 KB | DIP-28 | 8849 D | 8849 | ||
| Sharp | LH2307 40 | Mask ROM 128 KB | DIP-28 | 8849 E | 8849 | ||
| Sharp | LH2307 41 | Mask ROM 128 KB | DIP-28 | 8849 E | 8849 | ||
| NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 8834 KY | 8834 | ||
| Toshiba | 74HC139AP | 74-139 Series | DIP-16 | 8822 H | 8822 |
