Release Info
| Catalog ID | TFC-KR-5500-12 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 25, 1987 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

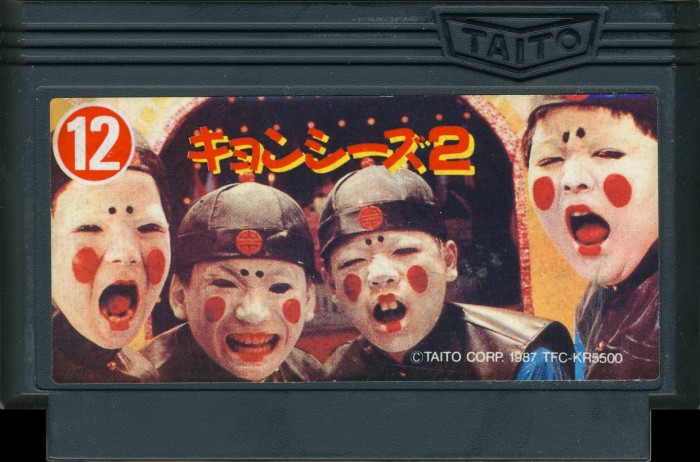

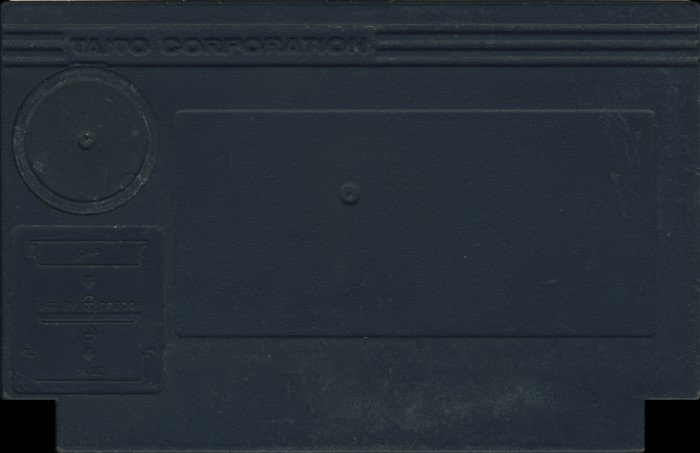

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Tall Label / Logo 1 / Real Battery Door |
| Embossed Text | |
| Front Label ID | TFC-KR5500 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

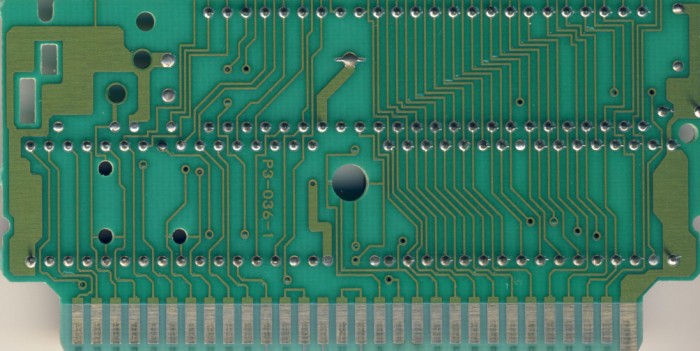

PCB Properties
| Name | P3-036-1 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8722 - 8737 (5) |
| Est First Run | June 1987 |
| PCB Class | TAITO-X1-005 |
| iNES Mapper | 80 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | X1-005 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 32E63133 | 1 |
| CHR0 | Not Present | 128 KB | 608CF2E9 | 5 |
| N/A | ROMs Combined | 256 KB | BA43568A | 1 |

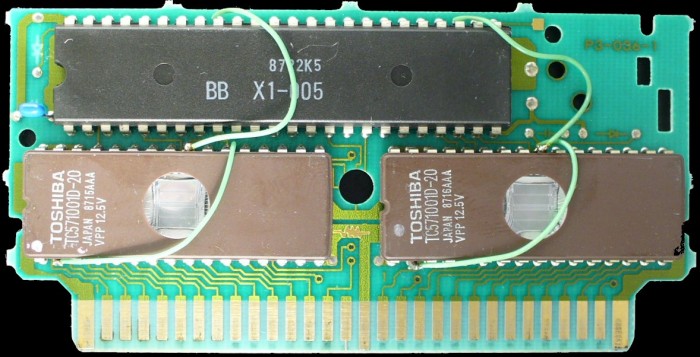

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8715 AAA | 8715 | ||
| Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8716 AAA | 8716 | ||
| NEC | X1-005 | Taito X1-005 | DIP-48 | 8722 K5 | 8722 | BB |
