Release Info
| Catalog ID | EFC-DR |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 18, 1985 |
| Publisher | Enix |
| Developer | Chunsoft |
| Players | 2 |
| Peripherals | Famicom Controller |

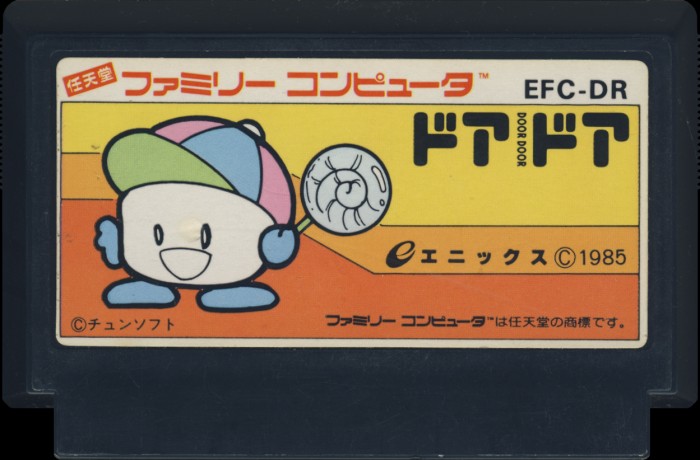

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | EFC-DR |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 33 |

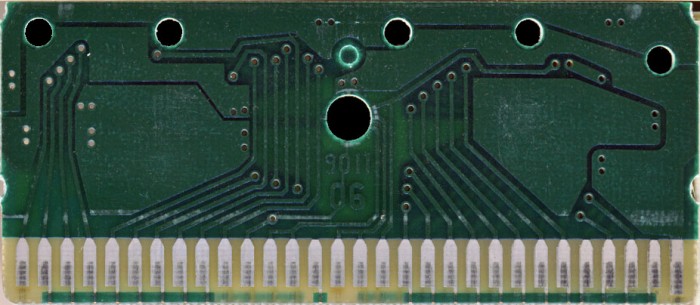

PCB Properties
| Name | 9011-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | |
| Est First Run | |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 021193B2 | 2 |
| CHR0 | Not Present | 8 KB | AE41CFEF | 2 |
| N/A | ROMs Combined | 24 KB | 12E6CB79 | 2 |

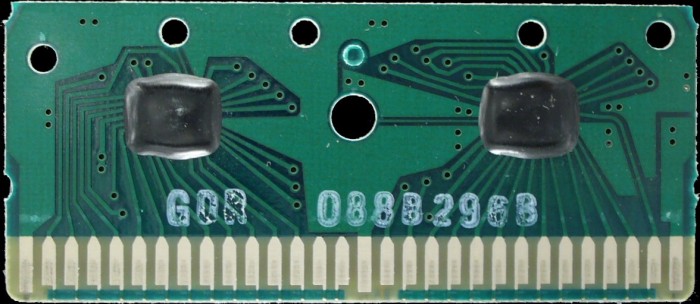

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17 | GDR | Chip-on-Board PCB | PCB | 088B296B | ||
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
