Release Info
| Catalog ID | SEI-1G |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 25, 1991 |
| Publisher | Sigma Enterprises |
| Developer | EIM |
| Players | 1 |
| Peripherals | Famicom Controller |

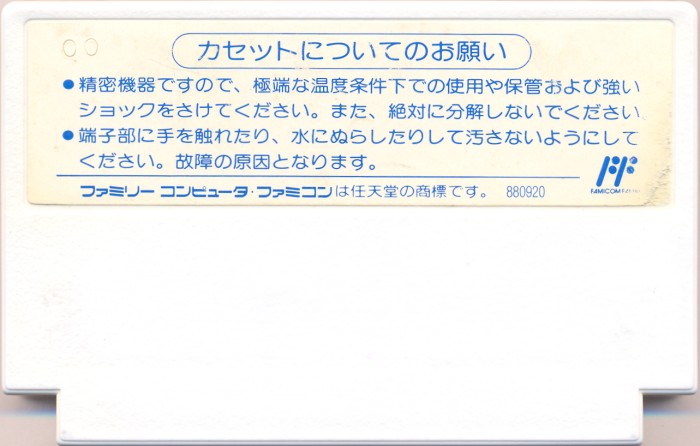

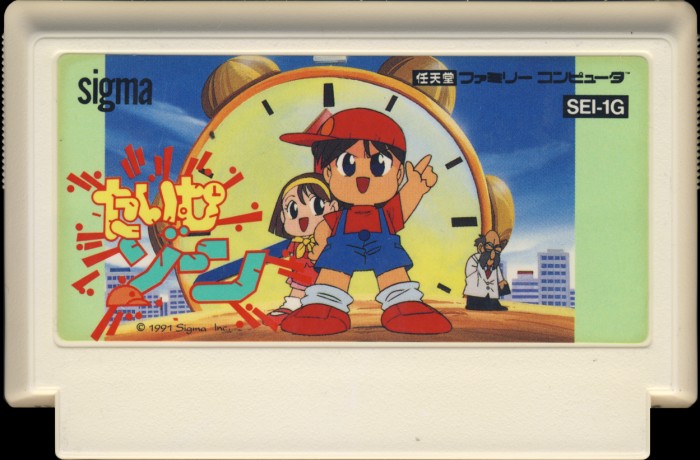

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SEI-1G |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

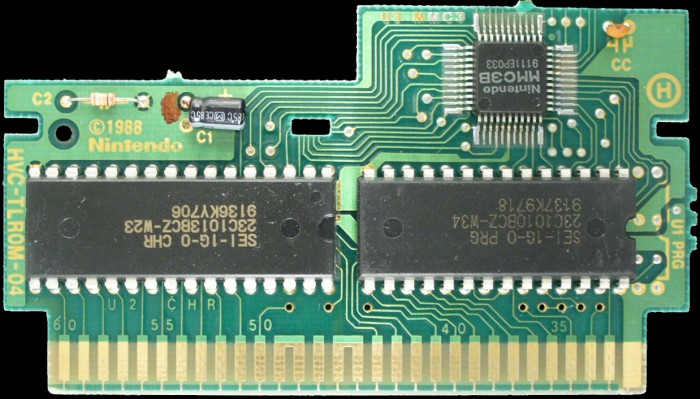

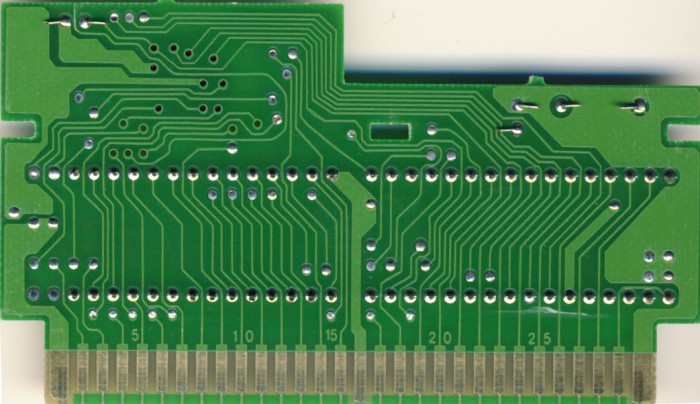

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9137 |
| Est First Run | September 1991 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SEI-1G-0 PRG | 128 KB | D852C2F7 | 1 |
| CHR0 | SEI-1G-0 CHR | 128 KB | 283971DB | 1 |
| N/A | ROMs Combined | 256 KB | E305202E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W34 | Mask ROM 128 KB | DIP-28 | 9137 K9718 | 9137 | |
| U2 CHR | NEC | 23C1013BCZ W23 | Mask ROM 128 KB | DIP-32 | 9136 KY706 | 9136 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9111 EP033 | 9111 |
