Release Info
| Catalog ID | HSP-35 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 21, 1991 |
| Publisher | ASCII |
| Developer | Game Studio |
| Players | 4 |
| Peripherals | ,Famicom Controller |

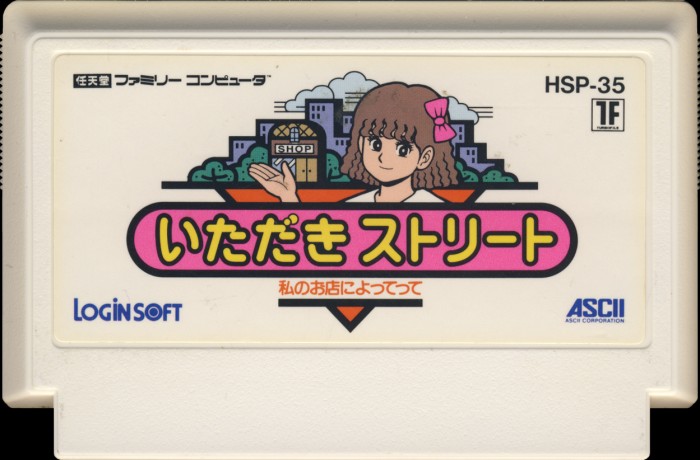

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-35 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

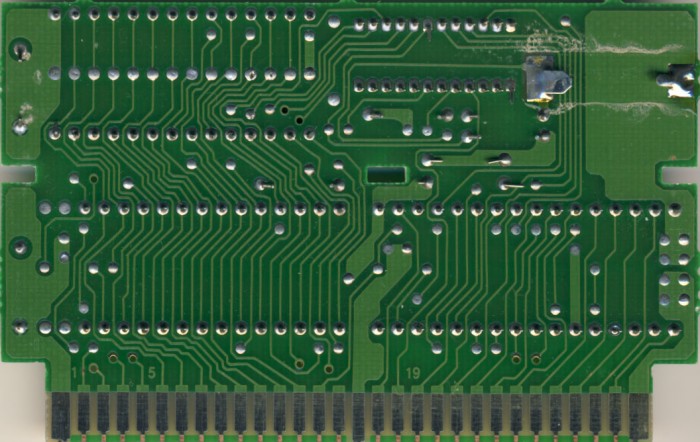

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9106 |
| Est First Run | February 1991 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-35-0 PRG | 128 KB | 7E5D2F1A | 1 |
| CHR0 | HSP-35-0 CHR | 128 KB | 1D98B913 | 1 |
| N/A | ROMs Combined | 256 KB | CA503F32 | 1 |

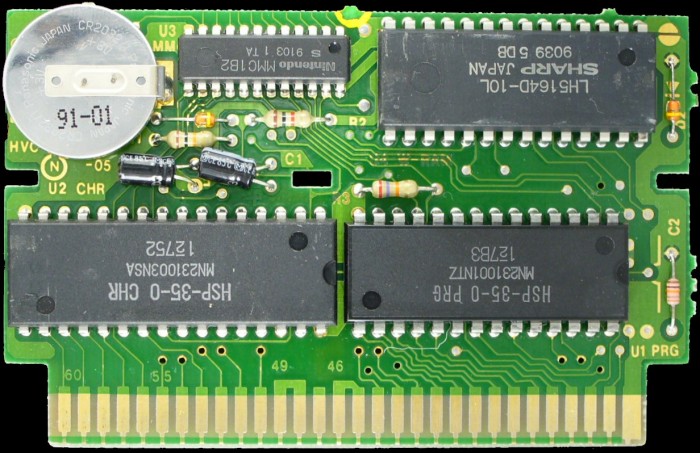

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NTZ | Mask ROM 128 KB | DIP-28 | 1 B3 | 9106 | |
| U2 CHR | Panasonic | MN231003 NSA | Mask ROM 128 KB | DIP-32 | 1 52 | 9106 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9103 1 TA | 9103 | |
| U4 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9039 5 DB | 9039 |
