Release Info
| Catalog ID | HSP-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 14, 1985 |
| Publisher | ASCII |
| Developer | Bits Laboratory |
| Players | 1 |
| Peripherals | Famicom Controller |

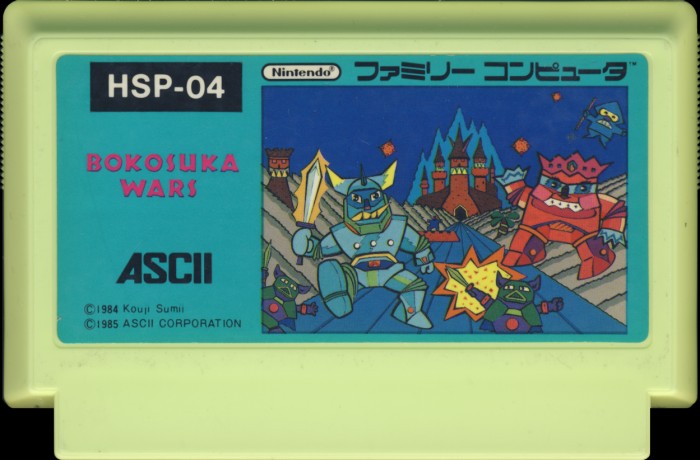

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Green Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-04 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

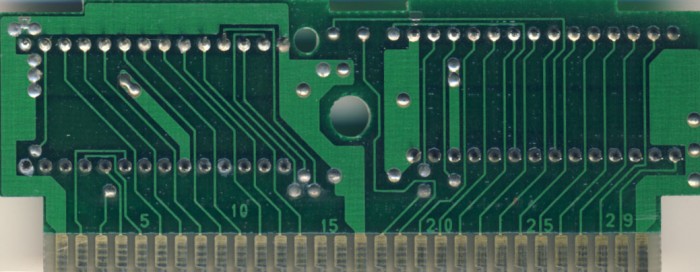

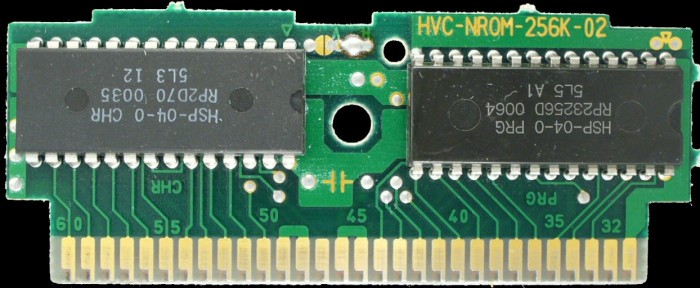

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8549 |
| Est First Run | December 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-04-0 PRG | 32 KB | F2D03ADA | 1 |
| CHR0 | HSP-04-0 CHR | 8 KB | BF52E49A | 1 |
| N/A | ROMs Combined | 40 KB | FE18E6B6 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256D 0064 | Mask ROM 32 KB | DIP-28 | 5L5 A1 | 8549 | |
| CHR | Ricoh | RP2D70 0035 | Mask ROM 8 KB | DIP-28 | 5L3 12 | 8547 |
