Release Info
| Catalog ID |
TKS-G2 |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
October 30, 1987 |
| Publisher |
Tokyo Shoseki |
| Developer |
Nihon Falcom |
| Players |
1 |
| Peripherals |
Famicom Controller |

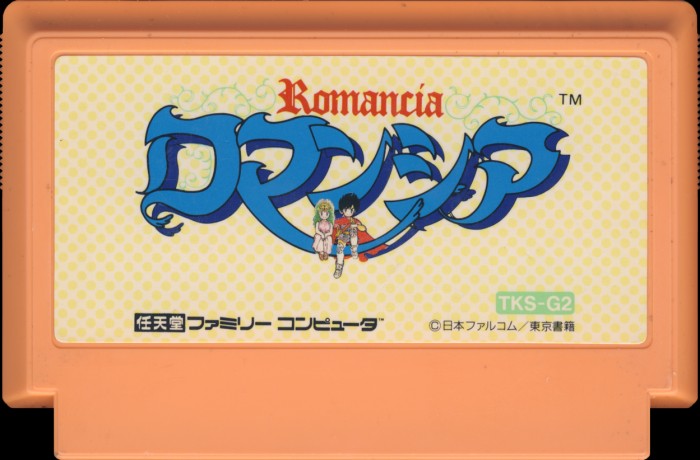

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Salmon |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TKS-G2 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SGROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8740 |
| Est First Run |
October 1987 |
| PCB Class |
HVC-SGROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TKS-G2-0 PRG |
128 KB |
CF9CF7A2 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
NEC |
UPD23C1010
|
Mask ROM
128 KB
|
DIP-28 |
8740
KP
|
8740 |
|
|
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8729
MX
|
8729 |
|
|
Sharp |
MMC1
|
Nintendo MMC1
|
DIP-24 |
8739
A
|
8739 |
|
Additional Images
PCB Images
