Release Info
| Catalog ID | HSP-08 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 23, 1987 |
| Publisher | ASCII |
| Developer | Kogado Studio |
| Players | 1 |
| Peripherals | ,Famicom Controller |

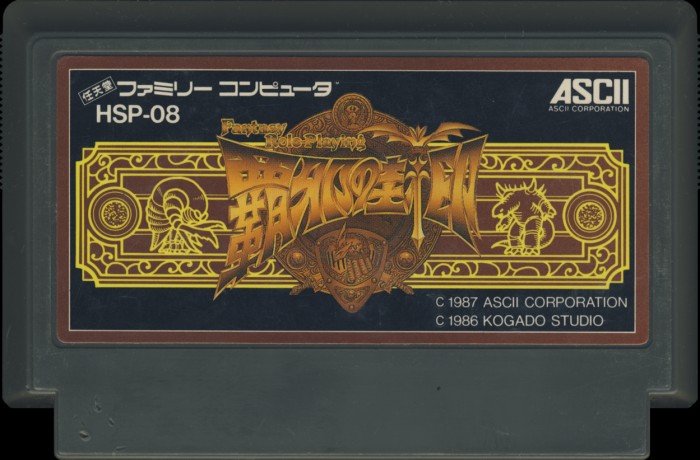

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Olive Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-08 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

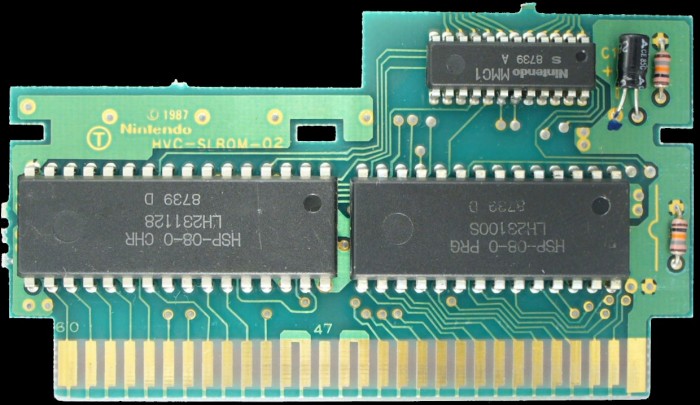

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8739 |
| Est First Run | September 1987 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-08-0 PRG | 128 KB | 7C46998B | 1 |
| CHR0 | HSP-08-0 CHR | 128 KB | 0006419C | 1 |
| N/A | ROMs Combined | 256 KB | 21DD2174 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 0S | Mask ROM 128 KB | DIP-28 | 8739 D | 8739 | ||
| Sharp | LH2311 28 | Mask ROM 128 KB | DIP-32 | 8739 D | 8739 | ||
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8739 A | 8739 |
