Release Info
| Catalog ID | NES-DI-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | August 17, 1990 |
| Publisher | Palcom |
| Developer | Electronic Arts |
| Players | 8 |
| Peripherals | NES Controller |

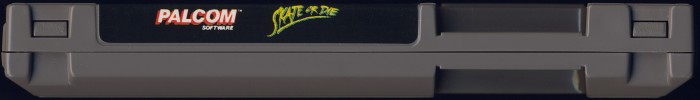

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DI-EEC |
| Seal of Quality | PAL: Round (Official) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9019 - 9021 (4) |
| Est First Run | May 1990 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-DI-0 PRG | 128 KB | 66EBDB64 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5441 | Mask ROM 128 KB | DIP-28 | 0DC 45 | 9014 | |
| U2 CHR RAM | OKI | M5165AL-12 | SRAM 8 KB | DIP-28 | 05 3002 | 9018 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9021 A | 9021 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8940 HnS | 8940 | 662510T |
| U5 HC32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 009 GN | 9009 |
