Release Info
| Catalog ID | NES-TB-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Hudson Soft |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-TB-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

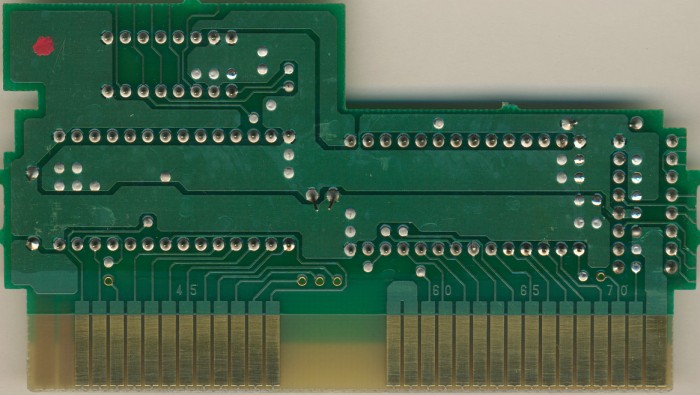

PCB Properties
| Name | NES-CNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9301 |
| Est First Run | January 1993 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-TB-0 PRG | 32 KB | BFD53541 | 1 |
| CHR0 | PAL-TB-0 CHR | 32 KB | E456E36A | 1 |
| N/A | ROMs Combined | 64 KB | 86867830 | 2 |

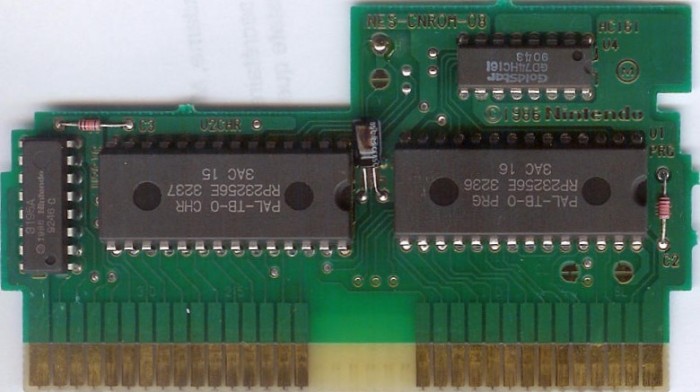

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3236 | Mask ROM 32 KB | DIP-28 | 3AC 16 | 9301 | |
| U2 CHR | Ricoh | RP23256E 3237 | Mask ROM 32 KB | DIP-28 | 3AC 15 | 9301 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9246 C | 9246 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9043 | 9043 |
