Release Info
| Catalog ID | NES-IR-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | March 27, 1991 |
| Publisher | Acclaim |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

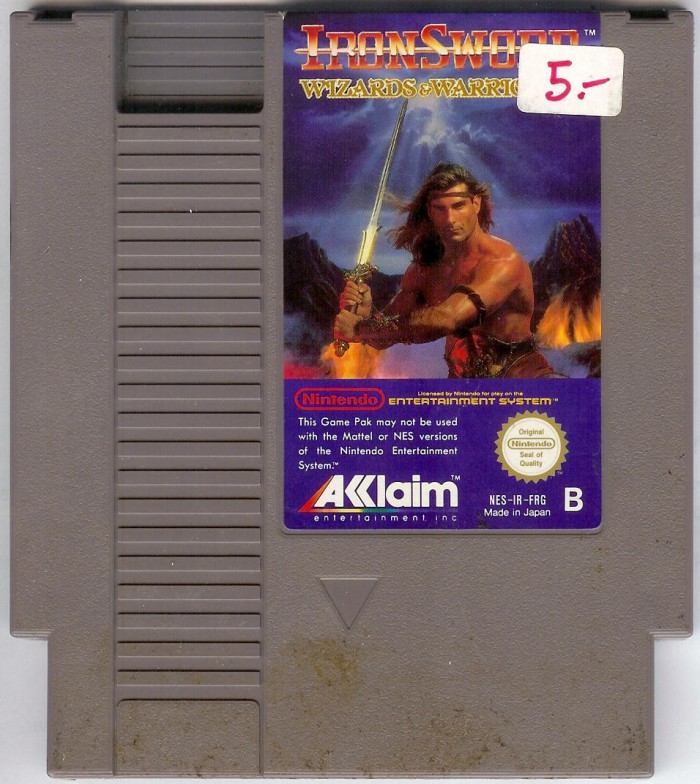

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IR-FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9113 |
| Est First Run | March 1991 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-IR-0 PRG | 256 KB | 694C801F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T86 | Mask ROM 256 KB | DIP-32 | 9113 PY200 | 9113 | |
| U2 CHR RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 0E 27E | 9018 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9113 A | 9113 | |
| U4 HC161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 9031 H | 9031 |
