Release Info
| Catalog ID | NES-LH-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | November 14, 1991 |
| Publisher | Nintendo |
| Developer | Imagineering |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LH-EEC |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

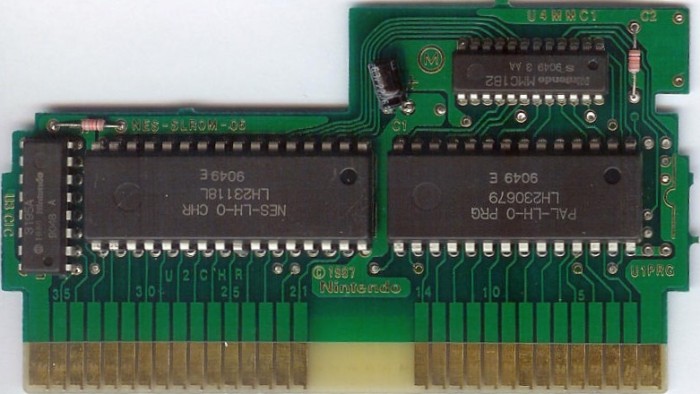

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 |
| Est First Run | December 1990 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-LH-0 PRG | 128 KB | 632EDF4E | 3 |
| CHR0 | NES-LH-0 CHR | 128 KB | BBA9A33D | 4 |
| N/A | ROMs Combined | 256 KB | E5A8401B | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 79 | Mask ROM 128 KB | DIP-28 | 9049 E | 9049 | |
| U2 CHR | Sharp | LH2311 8L | Mask ROM 128 KB | DIP-32 | 9049 E | 9049 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9048 A | 9048 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9049 3 AA | 9049 |
