Release Info
| Catalog ID | NES-OO-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1989 |
| Publisher | Tradewest |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

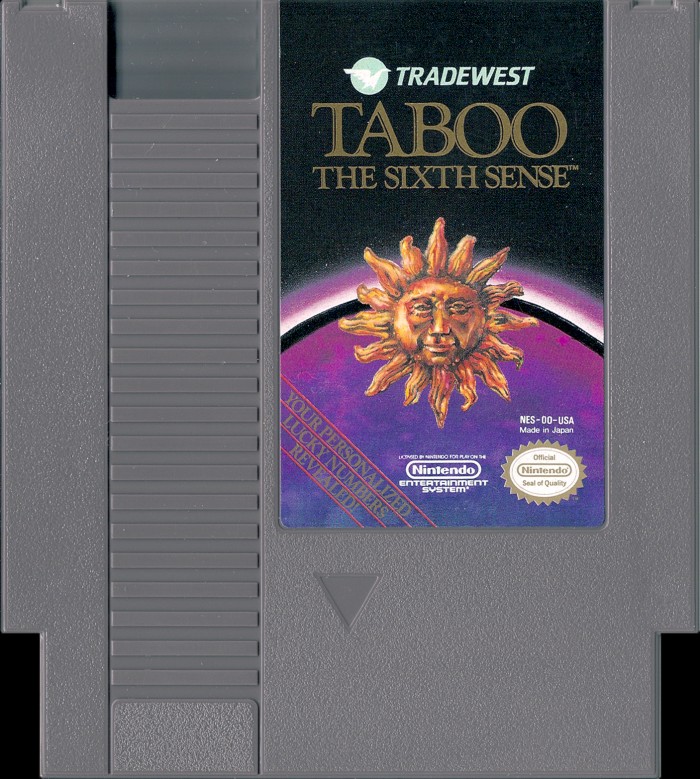

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OO-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

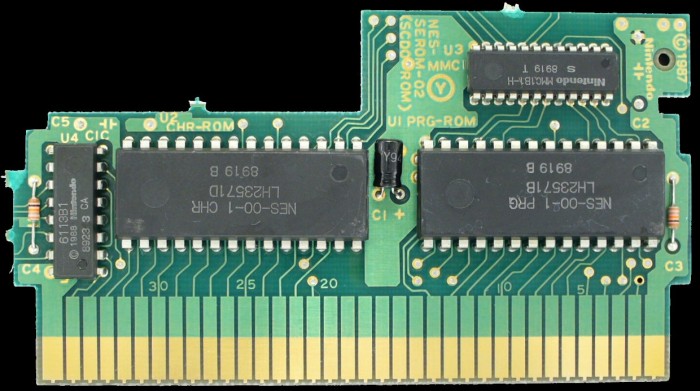

PCB Properties
| Name | NES-SEROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8912 - 8923 (2) |
| Est First Run | March 1989 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-OO-1 PRG | 32 KB | 4366545C | 1 |
| CHR0 | NES-OO-1 CHR | 32 KB | B4448997 | 1 |
| N/A | ROMs Combined | 64 KB | 482C79AF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Sharp | LH2357 1B | Mask ROM 32 KB | DIP-28 | 8919 B | 8919 | |
| U2 CHR-ROM | Sharp | LH2357 1D | Mask ROM 32 KB | DIP-28 | 8919 B | 8919 | |
| U3 MMC1 | Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8919 T | 8919 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8923 3 CA | 8923 |
