Release Info
| Catalog ID | NES-D3-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1992 |
| Publisher | Enix |
| Developer | Chunsoft |
| Players | 1 |
| Peripherals | NES Controller |

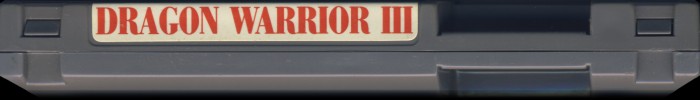

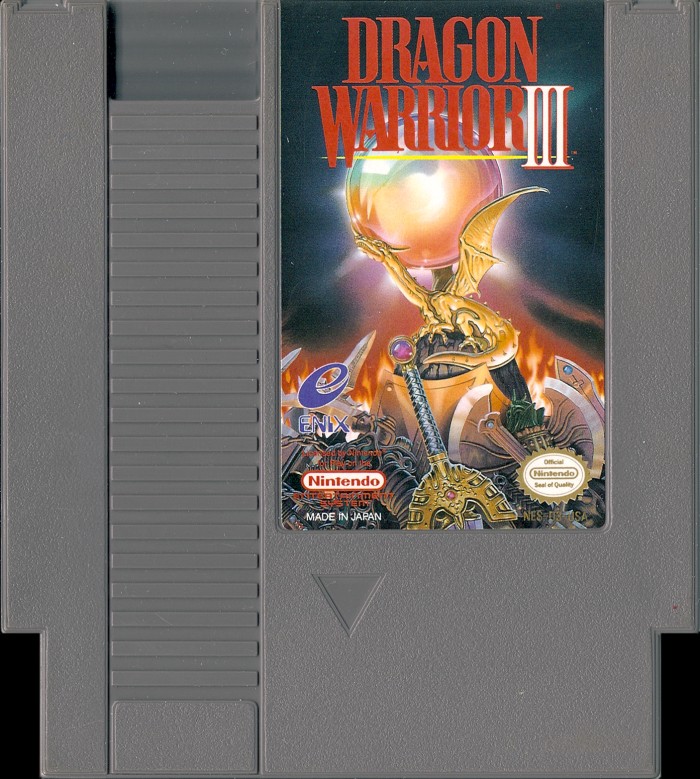

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-D3-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 27 |
PCB Properties
| Name | NES-SUROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9151 - 9214 (3) |
| Est First Run | December 1991 |
| PCB Class | NES-SUROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-D3-0 PRG | 512 KB | A86A5318 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH534J 52 | Mask ROM 512 KB | DIP-32 | 9214 D | 9214 | |
| U2 CHR-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9209 KT60 | 9209 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9047 3 AB | 9047 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9141 B3001 | 9141 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9210 KT76 | 9210 |
