Release Info
| Catalog ID | AVE-FC |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | Idea-Tek |
| Players | 1 |
| Peripherals | NES Controller |

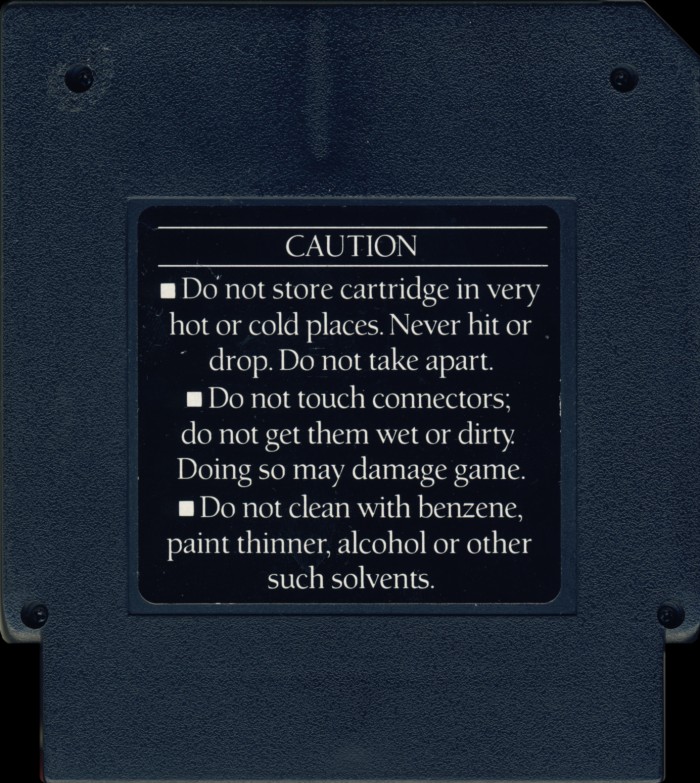

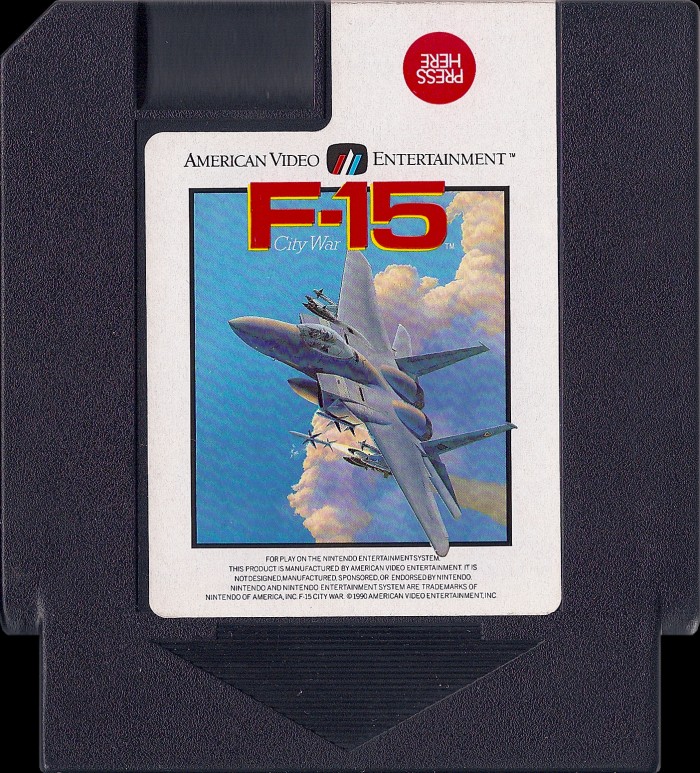

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

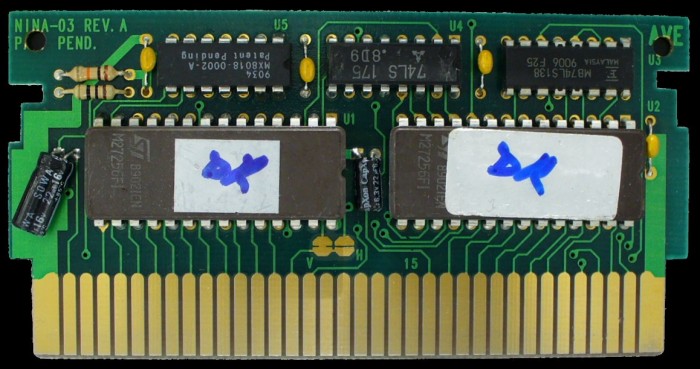

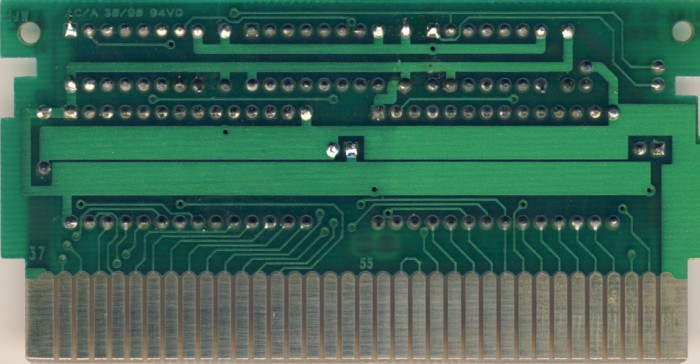

PCB Properties
| Name | NINA-03 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9034 - 9151 (2) |
| Est First Run | August 1990 |
| PCB Class | AVE-NINA-03 |
| iNES Mapper | 79 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | MX8018 |
| Hardware | 74xx138, 74xx175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 50322DFD | 1 |
| CHR0 | Not Present | 32 KB | E9721551 | 1 |
| N/A | ROMs Combined | 64 KB | 88A6B192 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | ST Micro | M27256F1 | UV EPROM 32 KB | DIP-28 | 9021 8 | 9021 | |
| U2 | ST Micro | M27256F1 | UV EPROM 32 KB | DIP-28 | 9021 8 | 9021 | |
| U3 | Fujitsu | MB74LS138 | 74-138 Series | DIP-16 | 9006 F25 | 9006 | |
| U4 | Panasonic | 74LS175 | 74-175 Series | DIP-16 | .8D9 | 8851 | |
| U5 | Macronix | MX8018-0002-A | AVE CIC | DIP-14 | 9034 | 9034 |
