Release Info
| Catalog ID | NES-PU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1988 |
| Publisher | Sunsoft |
| Developer | Ocean |
| Players | 1 |
| Peripherals | NES Controller |

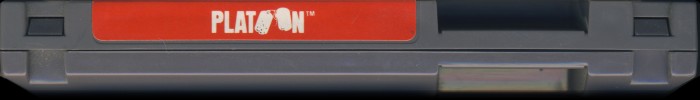

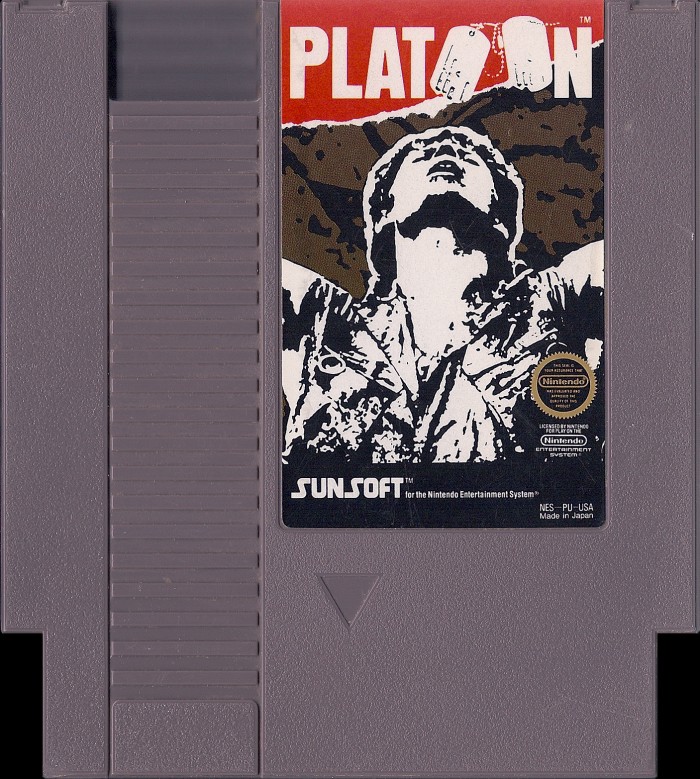

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PU-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |

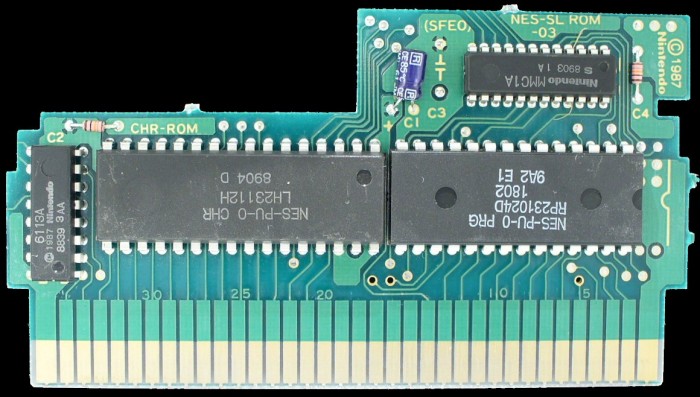

PCB Properties
| Name | NES-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8904 - 8919 (2) |
| Est First Run | January 1989 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PU-0 PRG | 128 KB | 9381A81D | 1 |
| CHR0 | NES-PU-0 CHR | 128 KB | 689DF57D | 3 |
| N/A | ROMs Combined | 256 KB | B3769A51 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231024D 1802 | Mask ROM 128 KB | DIP-28 | 9A2 E1 | 8902 | ||
| CHR-ROM | Sharp | LH2311 2H | Mask ROM 128 KB | DIP-32 | 8904 D | 8904 | |
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8839 3 AA | 8839 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8903 1 A | 8903 |
