Release Info
| Catalog ID | NES-KC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1986 |
| Publisher | Data East |
| Developer | Sakata SAS |
| Players | 2 |
| Peripherals | NES Controller |

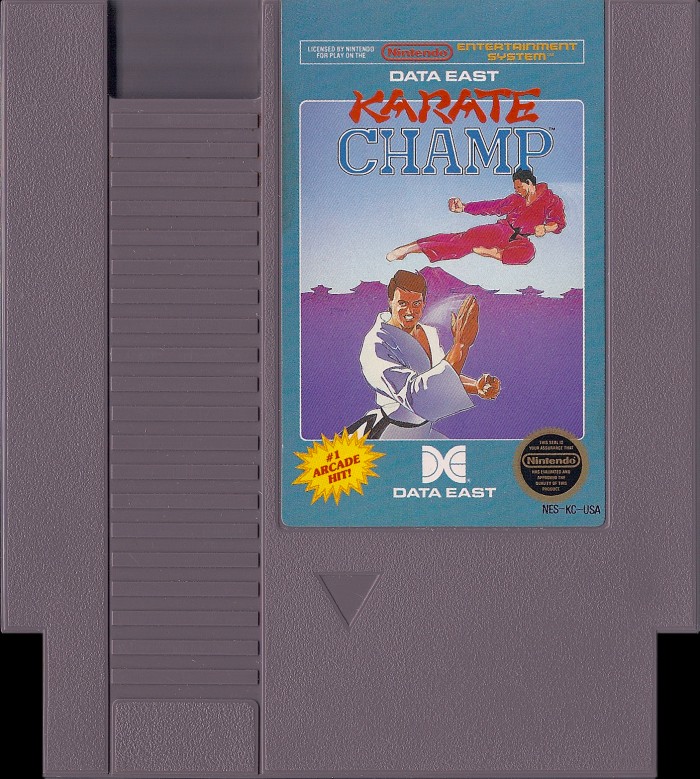

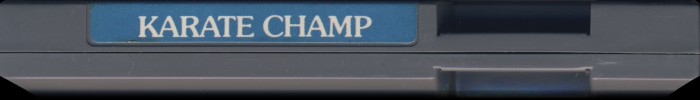

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KC-USA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 07 |

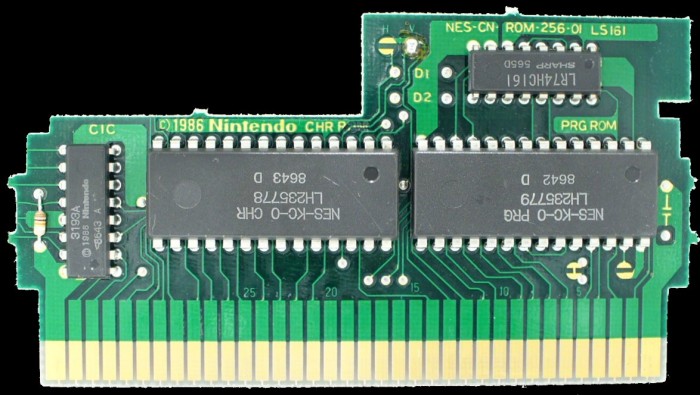

PCB Properties
| Name | NES-CN-ROM-256-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8643 - 8833 (4) |
| Est First Run | October 1986 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KC-0 PRG | 32 KB | 508EFA07 | 1 |
| CHR0 | NES-KC-0 CHR | 32 KB | 4B7318E6 | 1 |
| N/A | ROMs Combined | 64 KB | ACA145D8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 79 | Mask ROM 32 KB | DIP-28 | 8642 D | 8642 | |
| CHR ROM | Sharp | LH2357 78 | Mask ROM 32 KB | DIP-28 | 8643 D | 8643 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8643 A | 8643 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 65D 5 | 8622 |
