Release Info
| Catalog ID | NES-QR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1990 |
| Publisher | Square |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller |

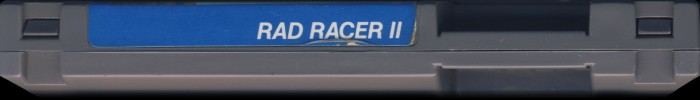

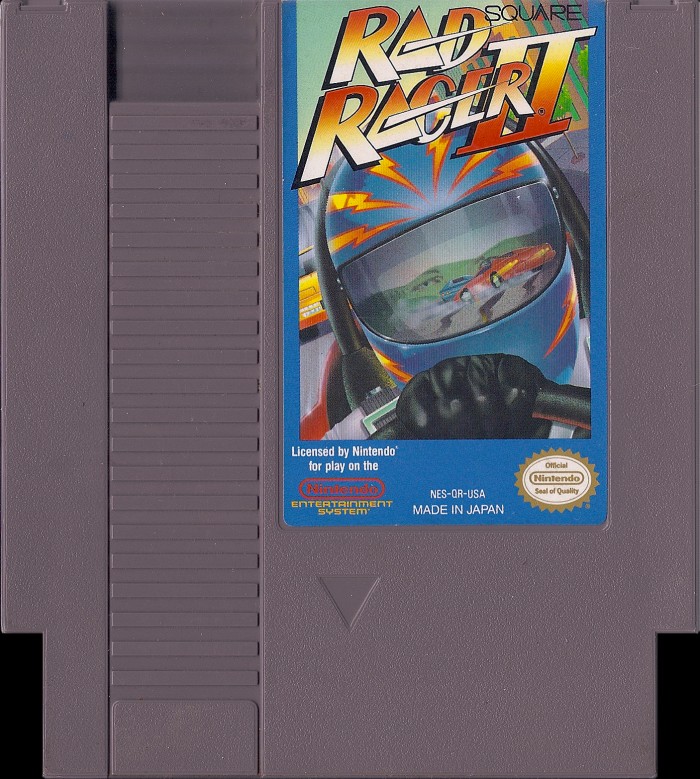

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-QR-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

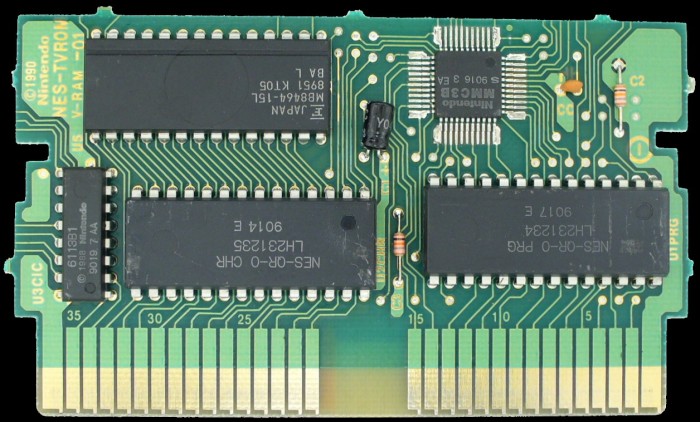

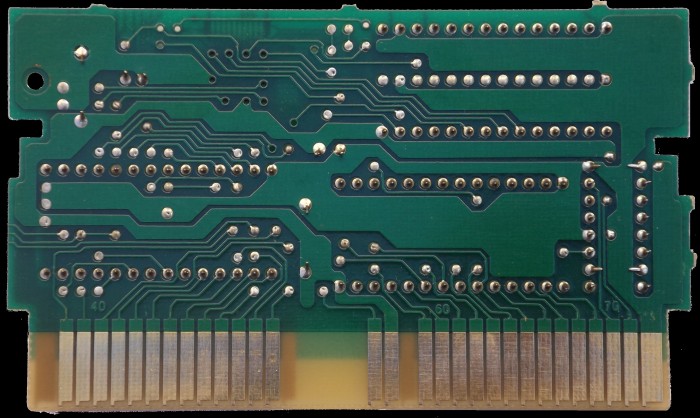

PCB Properties
| Name | NES-TVROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9019 - 9029 (3) |
| Est First Run | May 1990 |
| PCB Class | NES-TVROM |
| iNES Mapper | 4 |
| Mirroring | Four Screen |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 4 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-QR-0 PRG | 64 KB | AB90E397 | 4 |
| CHR0 | NES-QR-0 CHR | 64 KB | 07DF55D8 | 4 |
| N/A | ROMs Combined | 128 KB | 404B2E8B | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 34 | Mask ROM 64 KB | DIP-28 | 9017 E | 9017 | |
| U2 CHR | Sharp | LH2312 35 | Mask ROM 64 KB | DIP-28 | 9014 E | 9014 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9019 7 AA | 9019 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9016 3 EA | 9016 | |
| U5 V-RAM | Fujitsu | MB8464-15L | SRAM 8 KB | DIP-28 | 8951 KT05 | 8951 | BA L |
