Release Info
| Catalog ID | WT-BC-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed » Multi-cart |
| Release Date | 1991 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 1 |
| Peripherals | NES Controller |

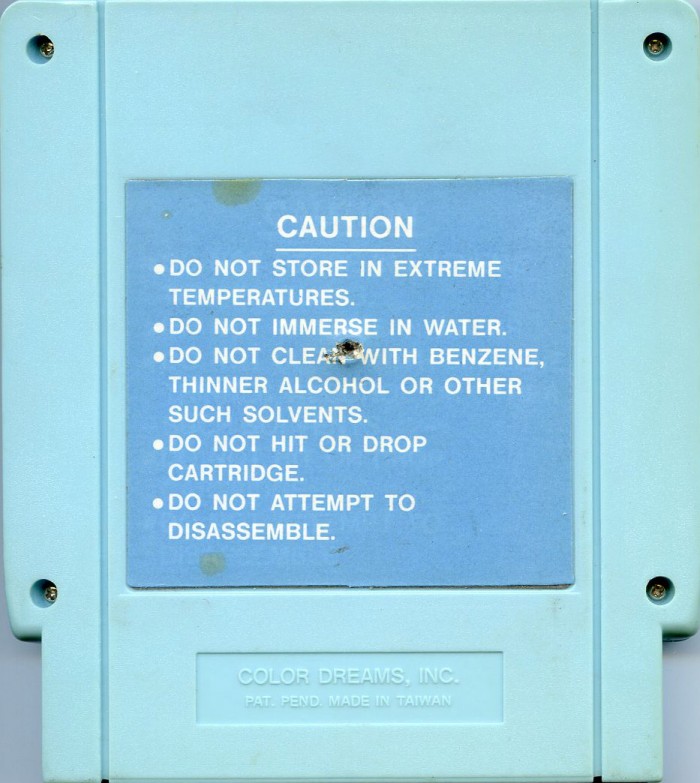

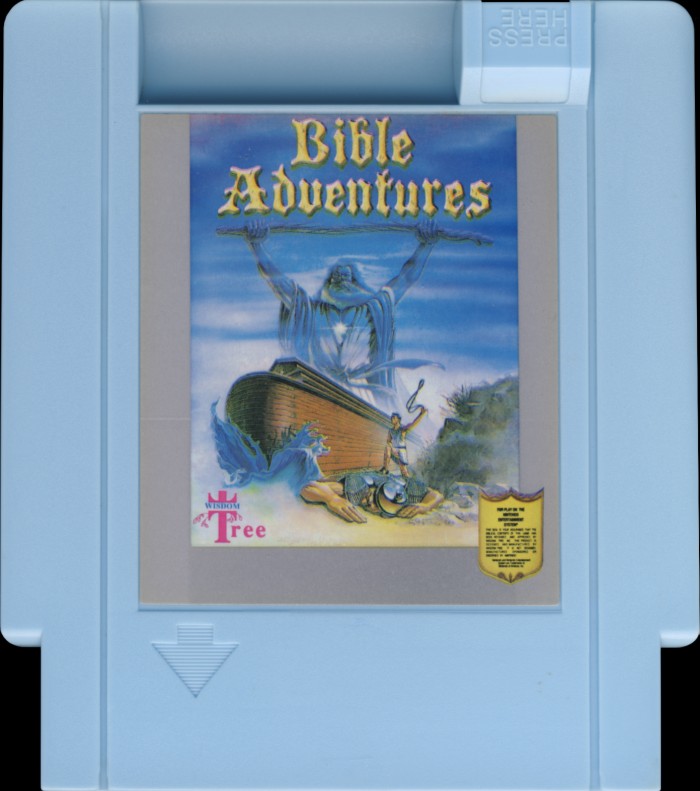

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Blue |
| Form Factor | Protruding Grip |
| Embossed Text | Color Dreams, Inc. Pat. Pend. Made in Taiwan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

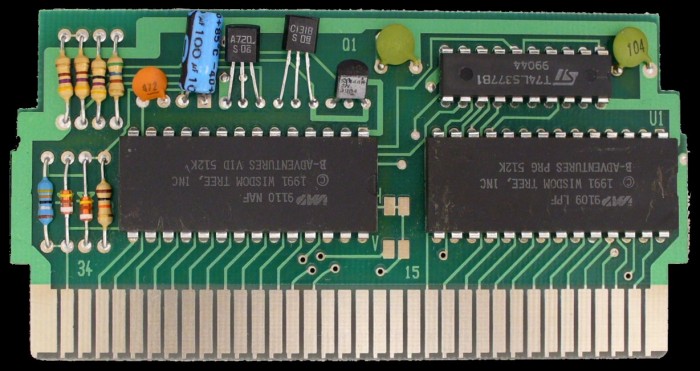

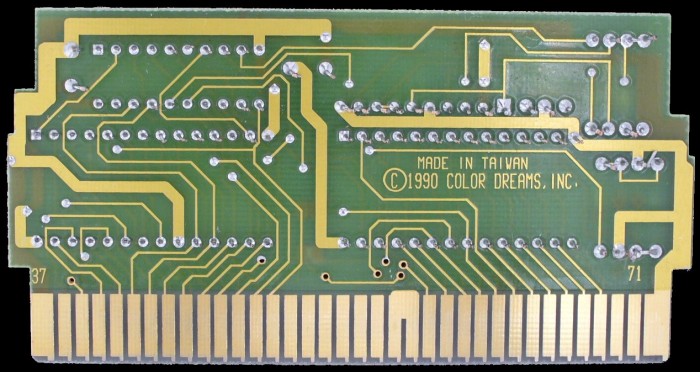

PCB Properties
| Name | UNK-COLORDREAMS-REVB |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9018 - 9407 (4) |
| Est First Run | May 1990 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | B-ADVENTURES PRG 512K | 64 KB | 3B73C254 | 1 |
| CHR0 | B-ADVENTURES VID 512K | 64 KB | BC62F3F3 | 1 |
| N/A | ROMs Combined | 128 KB | 7F24EFC0 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9109 LPF | 9109 | |
| U2 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9110 NAF | 9110 | |
| U3 | ST Micro | T74LS377B1 | 74-377 Series | DIP-20 | 9044 9 | 9044 |
