Release Info
| Catalog ID | NES-AW-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1987 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Power Pad |

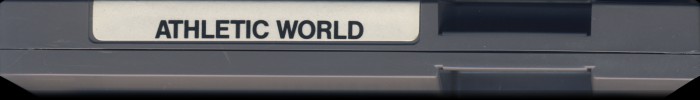

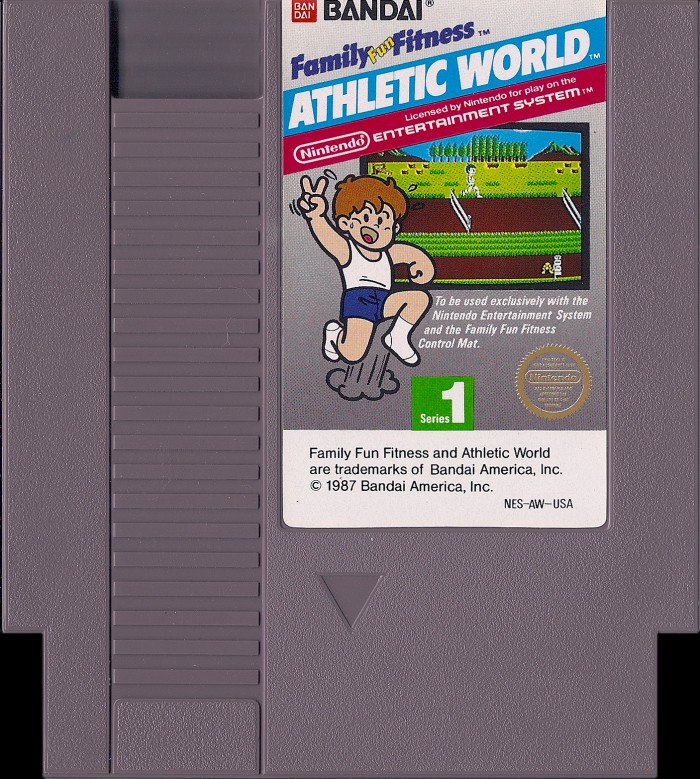

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AW-USA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 09 |

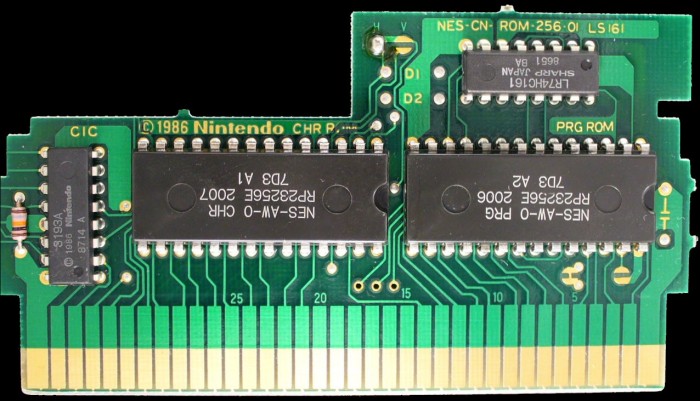

PCB Properties
| Name | NES-CN-ROM-256-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8717 - 8908 (2) |
| Est First Run | April 1987 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AW-0 PRG | 32 KB | BC5F6C94 | 3 |
| CHR0 | NES-AW-0 CHR | 32 KB | 51BF1FC5 | 7 |
| N/A | ROMs Combined | 64 KB | 1771EA8F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2006 | Mask ROM 32 KB | DIP-28 | 7D3 A2 | 8717 | |
| CHR ROM | Ricoh | RP23256E 2007 | Mask ROM 32 KB | DIP-28 | 7D3 A1 | 8717 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8714 A | 8714 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8651 BA | 8651 |
