Release Info
| Catalog ID | NES-SY-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1987 |
| Publisher | Sunsoft |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

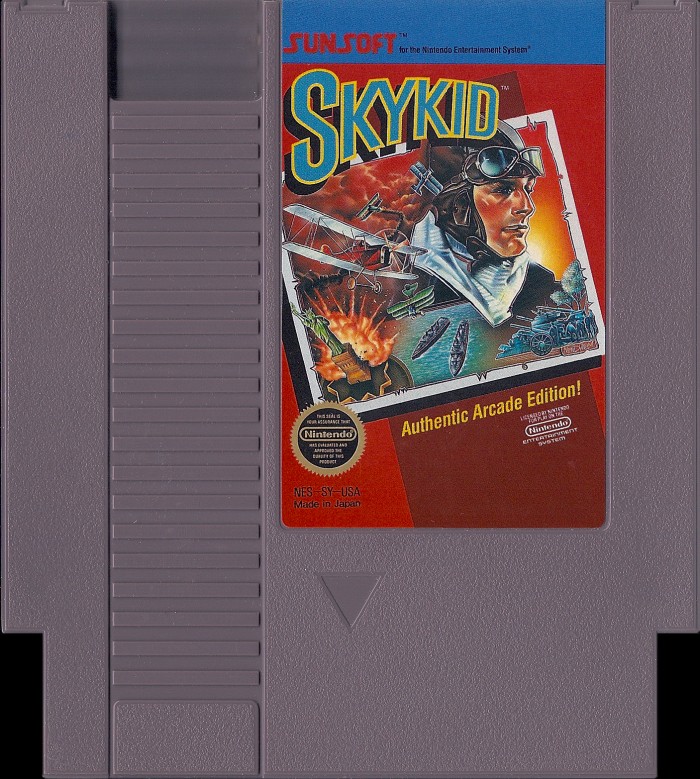

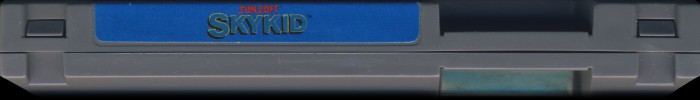

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-SY-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 05 |

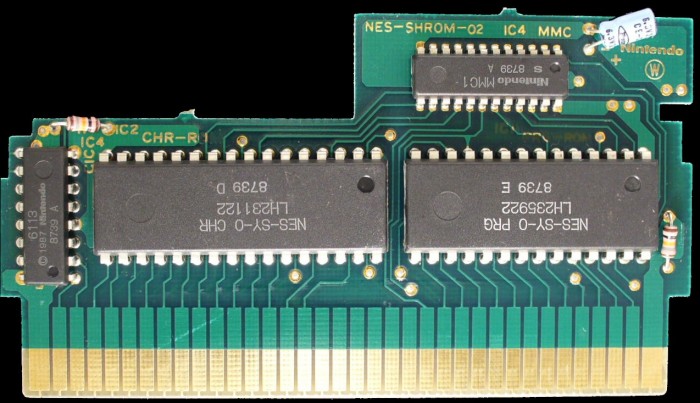

PCB Properties
| Name | NES-SHROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8736 - 8739 (2) |
| Est First Run | September 1987 |
| PCB Class | NES-SHROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-SY-0 PRG | 32 KB | AD7F9480 | 2 |
| CHR0 | NES-SY-0 CHR | 128 KB | 419C422A | 2 |
| N/A | ROMs Combined | 160 KB | 3322105A | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | Sharp | LH2359 22 | Mask ROM 32 KB | DIP-28 | 8739 E | 8739 | |
| IC2 CHR-ROM | Sharp | LH2311 22 | Mask ROM 128 KB | DIP-32 | 8739 D | 8739 | |
| IC3 CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8739 A | 8739 | |
| IC4 MMC | Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8739 A | 8739 |
