Release Info
| Catalog ID | NES-H3-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1989 |
| Publisher | Hi Tech Expressions |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

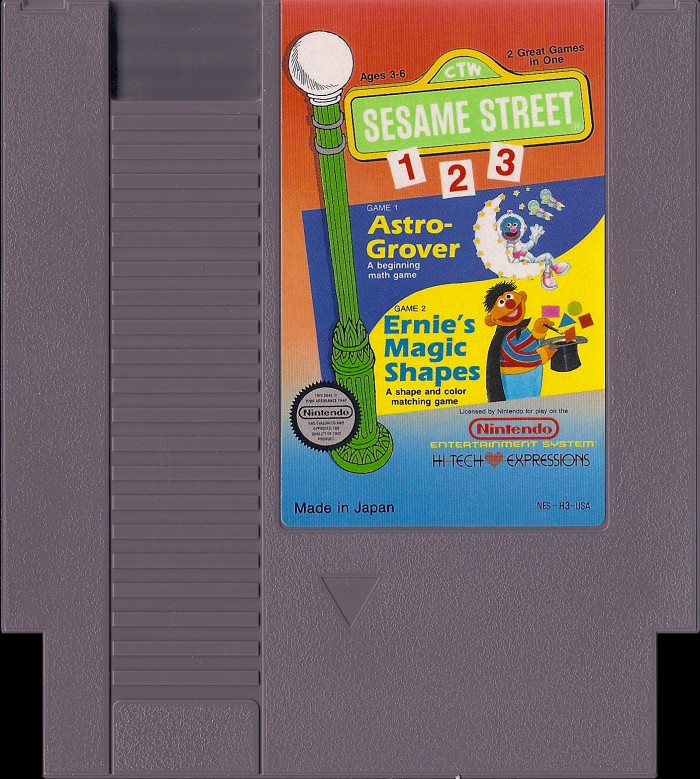

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-H3-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 05 |

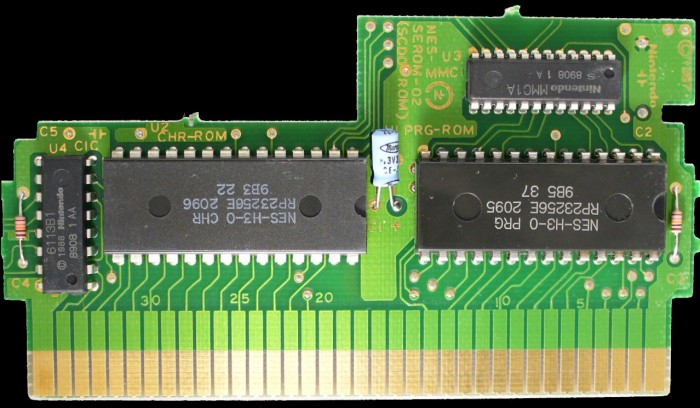

PCB Properties
| Name | NES-SEROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8910 - 9009 (2) |
| Est First Run | March 1989 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-H3-0 PRG | 32 KB | 0847C623 | 4 |
| CHR0 | NES-H3-0 CHR | 32 KB | 0E03CD95 | 4 |
| N/A | ROMs Combined | 64 KB | 339437F6 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Ricoh | RP23256E 2095 | Mask ROM 32 KB | DIP-28 | 9B5 37 | 8910 | |
| U2 CHR-ROM | Ricoh | RP23256E 2096 | Mask ROM 32 KB | DIP-28 | 9B3 22 | 8908 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8908 1 A | 8908 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8908 1 AA | 8908 |
