Release Info
| Catalog ID | NES-ZL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

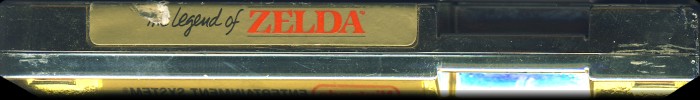

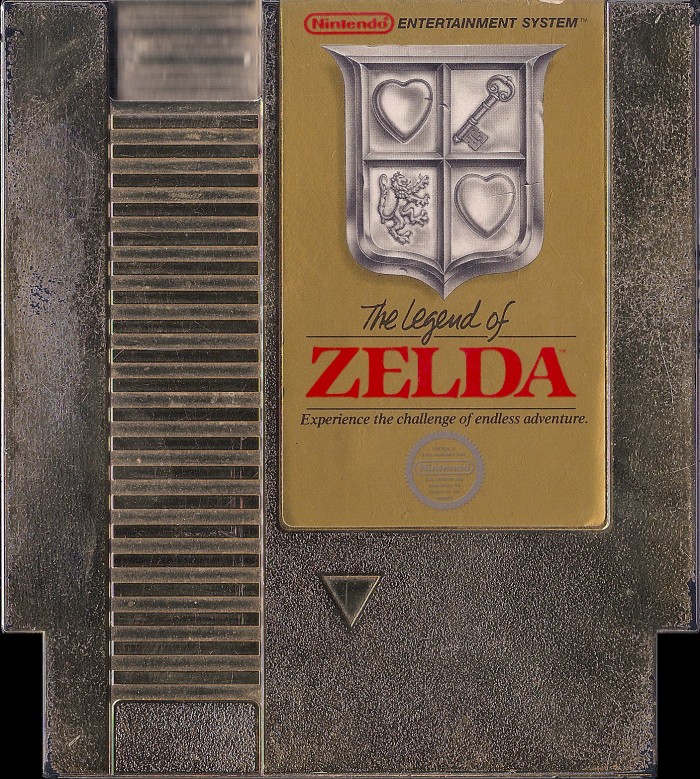

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Gold |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SNROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8723 - 9229 (7) |
| Est First Run | June 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3193A |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZL-0 PRG | 128 KB | 3FE272FB | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2310 43 | Mask ROM 128 KB | DIP-28 | 8722 D | 8722 | |
| CHR | Hitachi | 64KSALP-NI L | SRAM 8 KB | DIP-28 | 8714 | 8714 | 03002990 |
| Sharp | 3193A | Nintendo CIC | DIP-16 | 8723 A | 8723 | ||
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8719 A | 8719 | ||
| Mitsubishi | M5M5165P-15L | SRAM 8 KB | DIP-28 | 705 105 | 8705 |
