Release Info
| Catalog ID | NES-9B-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Absolute |
| Developer | Imagineering |
| Players | 1 |
| Peripherals | NES Controller |

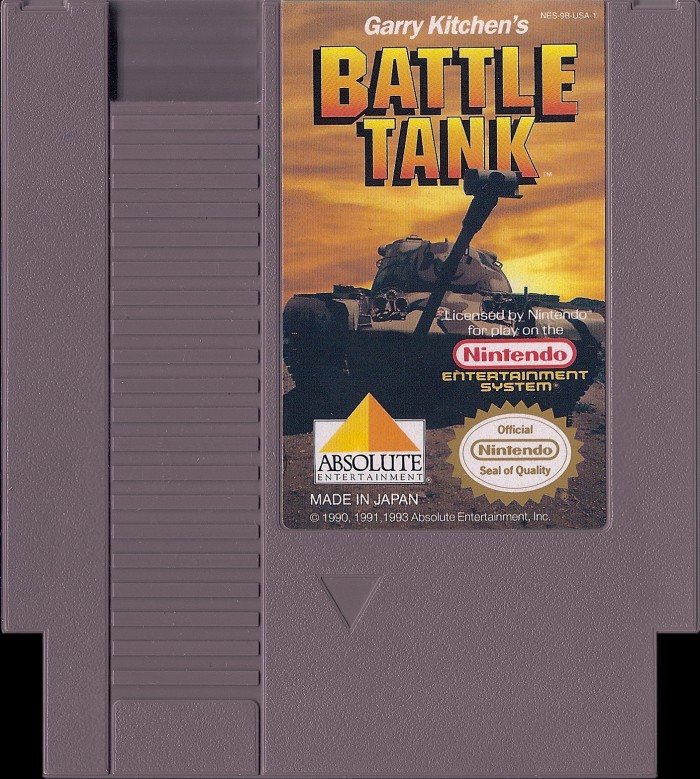

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-9B-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

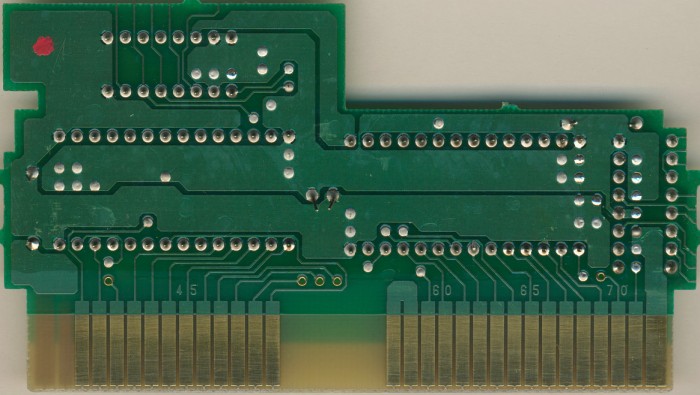

PCB Properties
| Name | NES-CNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9113 - 9314 (3) |
| Est First Run | March 1991 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-9B-0 PRG | 32 KB | 554B51D8 | 3 |
| CHR0 | NES-9B-0 CHR | 32 KB | DA22F981 | 3 |
| N/A | ROMs Combined | 64 KB | 90D68A43 | 3 |

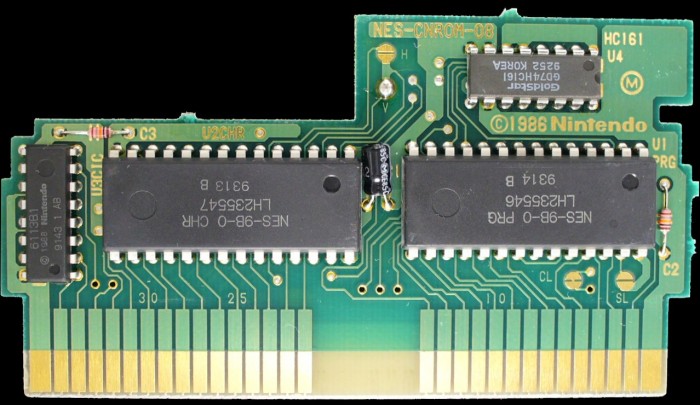

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 46 | Mask ROM 32 KB | DIP-28 | 9314 B | 9314 | |
| U2 CHR | Sharp | LH2355 47 | Mask ROM 32 KB | DIP-28 | 9313 B | 9313 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9143 1 AB | 9143 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9252 | 9252 |
