| Catalog ID | NES-FC-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Hudson Soft |
| Developer | Shimada Kikaku |
| Players | 1 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FC-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9304 |
| Est First Run | January 1993 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-FC-0 PRG | 128 KB | DC549BD3 | 1 |
| CHR0 | PAL-FC-0 CHR | 128 KB | 60171742 | 3 |
| N/A | ROMs Combined | 256 KB | FBD48274 | 1 |

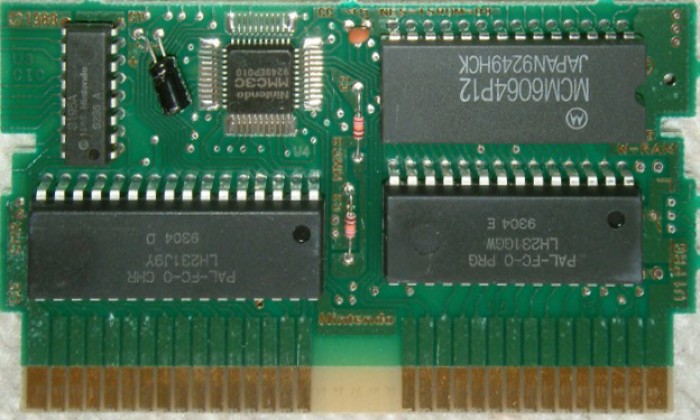

| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G GW | Mask ROM 128 KB | DIP-28 | 9304 E | 9304 | |
| U2 CHR | Sharp | LH231J 9Y | Mask ROM 128 KB | DIP-32 | 9304 D | 9304 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9235 A | 9235 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9249 EP010 | 9249 | |
| U5 W-RAM | Motorola | MCM6064P12 | SRAM 8 KB | DIP-28 | 9249 HCK | 9249 |
