Release Info
| Catalog ID | NES-MP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1992 |
| Publisher | Sammy |
| Developer | New World Computing |
| Players | 1 |
| Peripherals | NES Controller |

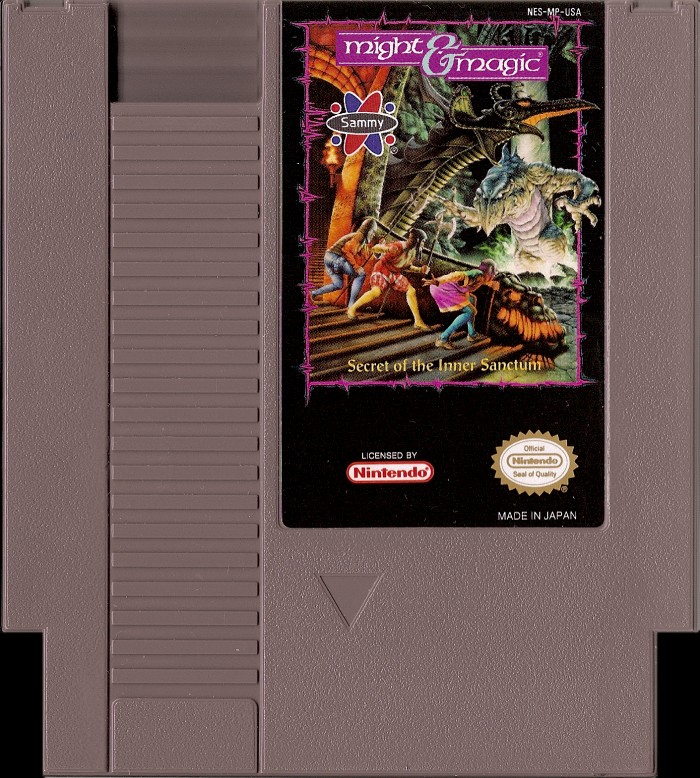

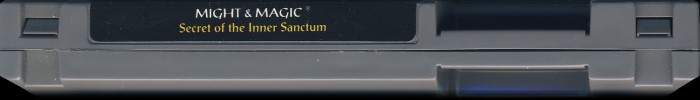

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MP-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

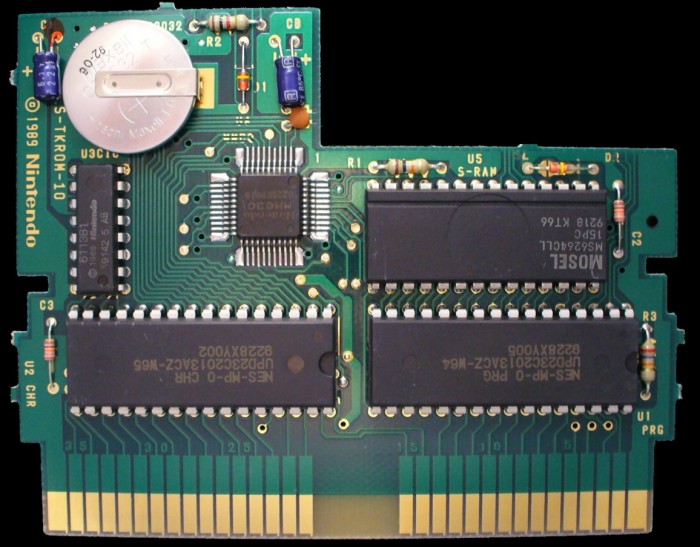

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9228 |
| Est First Run | July 1992 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MP-0 PRG | 256 KB | 55E73CE5 | 1 |
| CHR0 | NES-MP-0 CHR | 256 KB | D5F5164F | 1 |
| N/A | ROMs Combined | 512 KB | 532A27E6 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W64 | Mask ROM 256 KB | DIP-32 | 9228 XY005 | 9228 | |
| U2 CHR | NEC | UPD23C2013ACZ W65 | Mask ROM 256 KB | DIP-32 | 9228 XY002 | 9228 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9142 5 AB | 9142 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9225 EP016 | 9225 | |
| U5 S-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9218 KT66 | 9218 |
