Release Info
| Catalog ID | NES-UE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1990 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

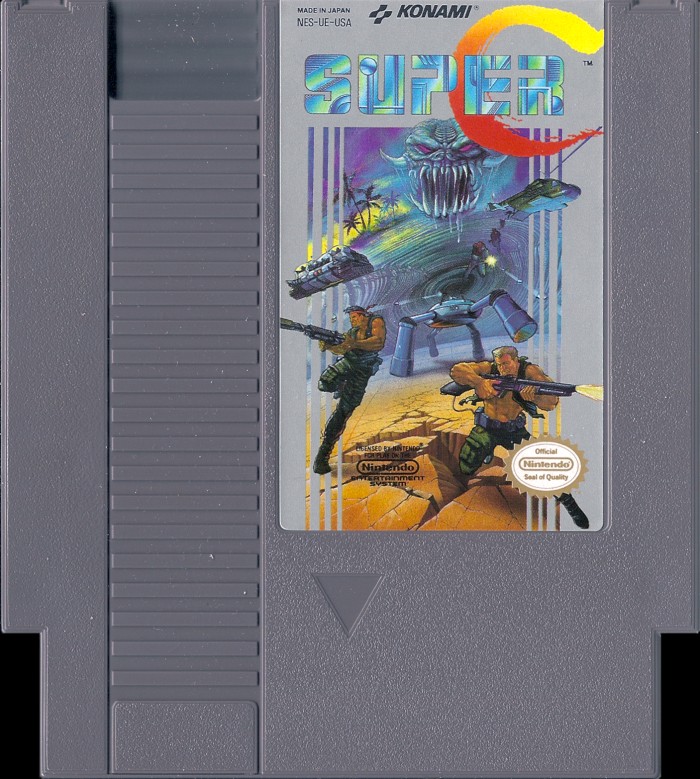

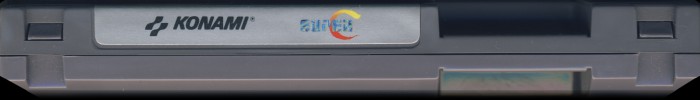

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UE-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 24 |

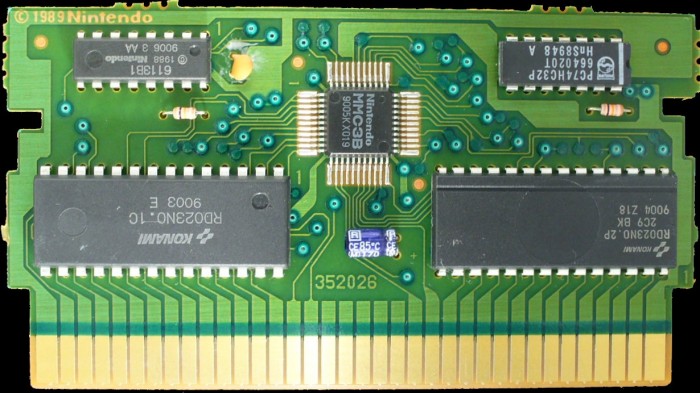

PCB Properties
| Name | 352026 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9006 - 9008 (2) |
| Est First Run | February 1990 |
| PCB Class | KONAMI-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RD023N0.2P | 128 KB | C7FBECC3 | 5 |
| CHR0 | RD023N0.1C | 128 KB | 153295C1 | 5 |
| N/A | ROMs Combined | 256 KB | 305B4E62 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 9004 Z18 | 9004 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9003 E | 9003 | ||
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9006 3 AA | 9006 | ||
| NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9005 KX019 | 9005 | ||
| Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8948 HnS | 8948 | 664020T |
