Release Info
| Catalog ID | NES-M8-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 1993 |
| Publisher | Hi Tech Expressions |
| Developer | Beam Software |
| Players | 1 |
| Peripherals | NES Controller |

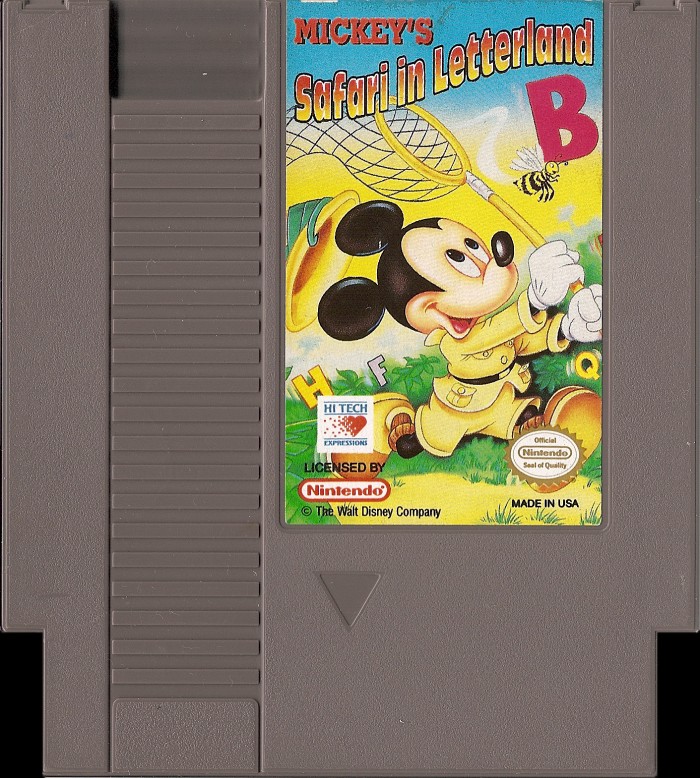

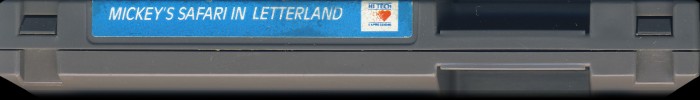

Cart Properties
| Cart Producer | Hi Tech Expressions |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Manufactured by Hi Tech Expressions Licensed by Nintendo Made in U.S.A. |
| Front Label ID | Not Present |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code |

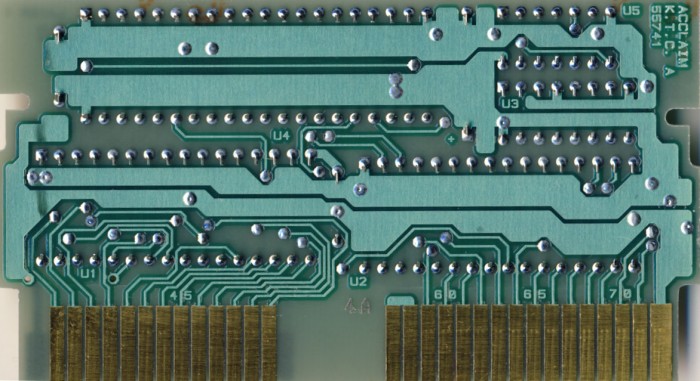

PCB Properties
| Name | 55741 |
|---|---|
| PCB Producer | Acclaim |
| Manufacturer | Key Tronic |
| Mfg Range | 9304 |
| Est First Run | January 1993 |
| PCB Class | ACCLAIM-MC-ACC |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx08, MC-ACC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-M8 PRG | 128 KB | 91AA57F1 | 1 |
| CHR0 | NES-M8 CHR | 128 KB | FBD1BB6A | 1 |
| N/A | ROMs Combined | 256 KB | 982DFB38 | 1 |

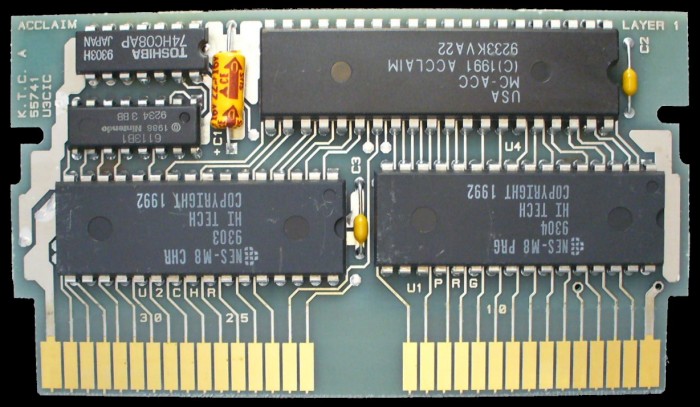

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Samsung | KM23C1003 | Mask ROM 128 KB | DIP-32 | 9304 | 9304 | |
| U2 CHR | Samsung | KM23C1003 | Mask ROM 128 KB | DIP-32 | 9303 | 9303 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9234 3 BB | 9234 | |
| U4 | Acclaim | MC-ACC | Acclaim MC-ACC | DIP-40 | 9233 KVA22 | 9233 | |
| U5 | Toshiba | 74HC08AP | 74-08 Series | DIP-14 | 9303 H | 9303 |
