Release Info
| Catalog ID | AVE-TF |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | C & E |
| Players | 2 |
| Peripherals | NES Controller |

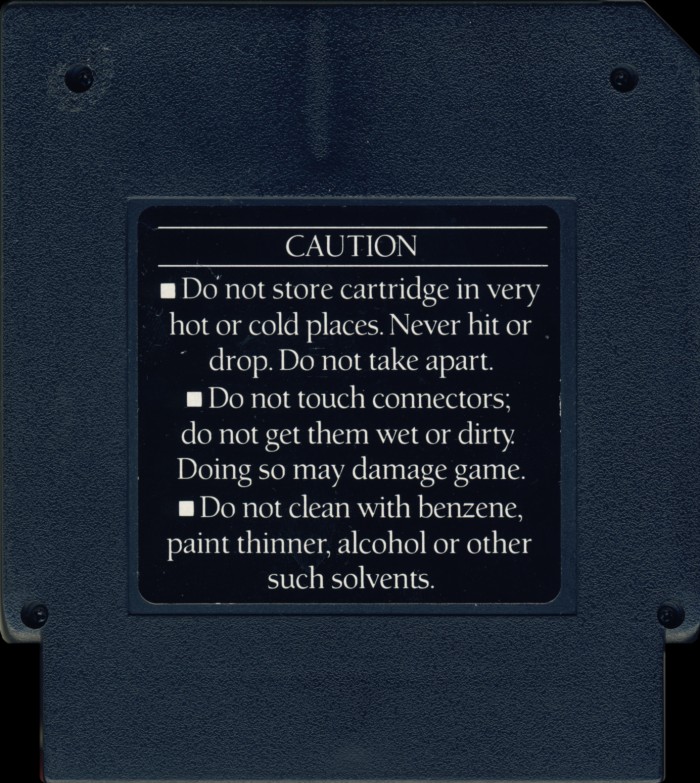

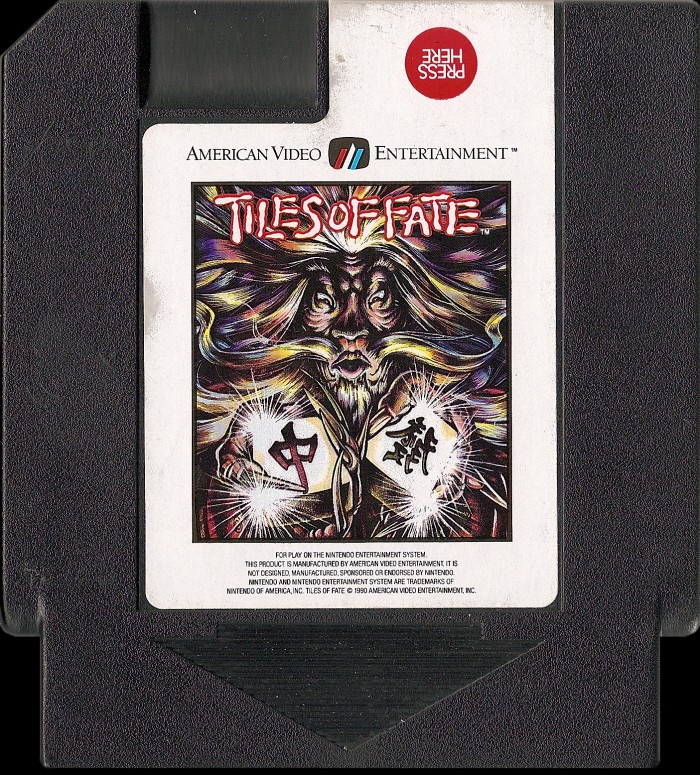

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

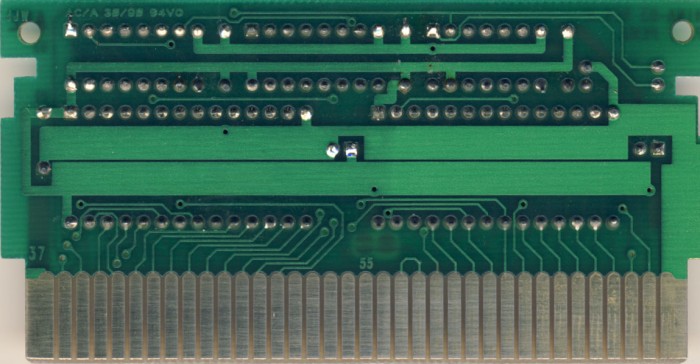

PCB Properties
| Name | NINA-03 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9044 |
| Est First Run | November 1990 |
| PCB Class | AVE-NINA-03 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | MX8018 |
| Hardware | 74xx138, 74xx175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 652A-PGM | 32 KB | 6679648A | 1 |
| CHR0 | 0D97-CHR | 32 KB | DE7F6C61 | 1 |
| N/A | ROMs Combined | 64 KB | 3E1271D5 | 1 |

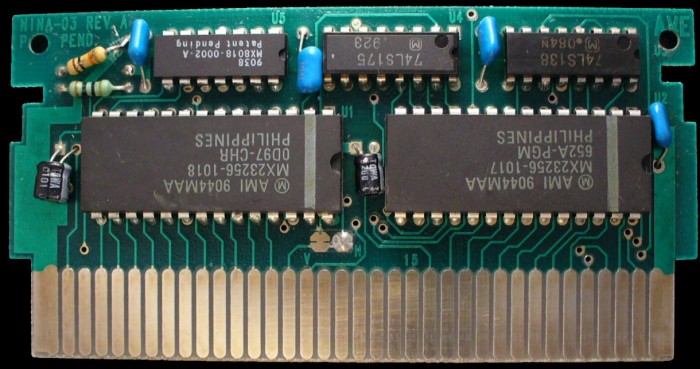

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | AMI | MX23256 1018 | Mask ROM 32 KB | DIP-28 | 9044 MAA | 9044 | |
| U2 | AMI | MX23256 1017 | Mask ROM 32 KB | DIP-28 | 9044 MAA | 9044 | |
| U3 | Matsushita | 74LS138 | 74-138 Series | DIP-16 | .084 N_ | 9033 | |
| U4 | Matsushita | 74LS175 | 74-175 Series | DIP-16 | .923 | 8907 | |
| U5 | Macronix | MX8018-0002-A | AVE CIC | DIP-14 | 9038 | 9038 |
