Release Info
| Catalog ID | HVC-2I |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 14, 1992 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

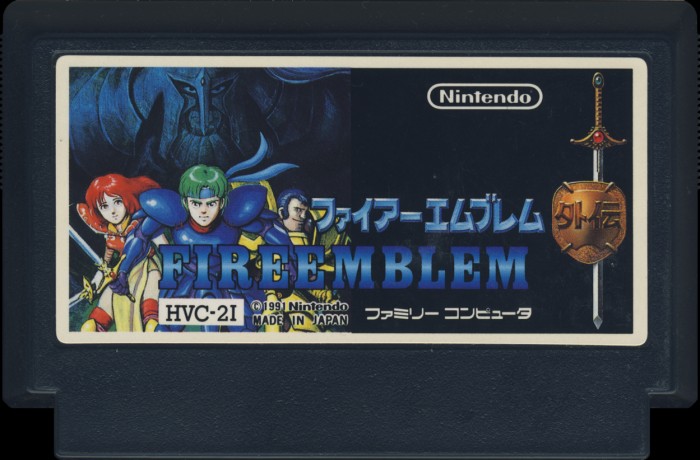

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-2I |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

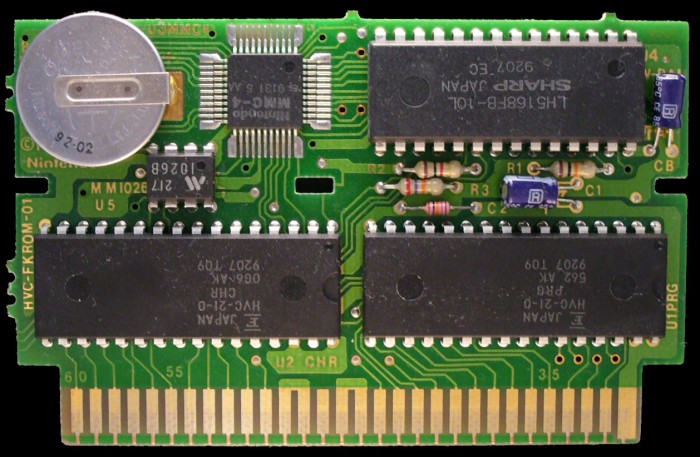

PCB Properties
| Name | HVC-FKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9207 - 9214 (2) |
| Est First Run | February 1992 |
| PCB Class | HVC-FKROM |
| iNES Mapper | 10 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MM1026, MMC4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-2I-0 PRG | 256 KB | E8456051 | 2 |
| CHR0 | HVC-2I-0 CHR | 128 KB | 963FD7C5 | 2 |
| N/A | ROMs Combined | 384 KB | A98046B8 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9207 T09 | 9207 | |
| U2 CHR | Fujitsu | MB831003 | Mask ROM 128 KB | DIP-32 | 9207 T09 | 9207 | |
| U3 MMC4 | Sharp | MMC-4 | Nintendo MMC4 | TQFP-44 | 9131 5 AA | 9131 | |
| U4 W-RAM | Sharp | LH5168FB-10L | SRAM 8 KB | DIP-28 | 9207 EC | 9207 | |
| U5 MM1026 | Mitsumi | 1026B | MM1026 | DIP-8 | 21 7 | 9201 |
