Release Info
| Catalog ID | DFC-BW |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 3, 1986 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |

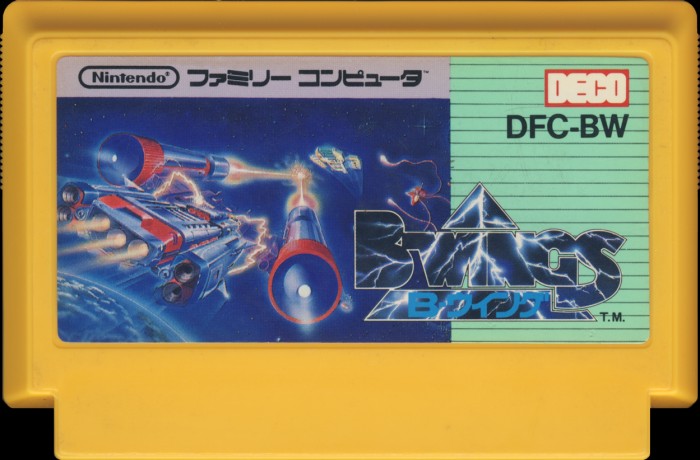

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DFC-BW |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

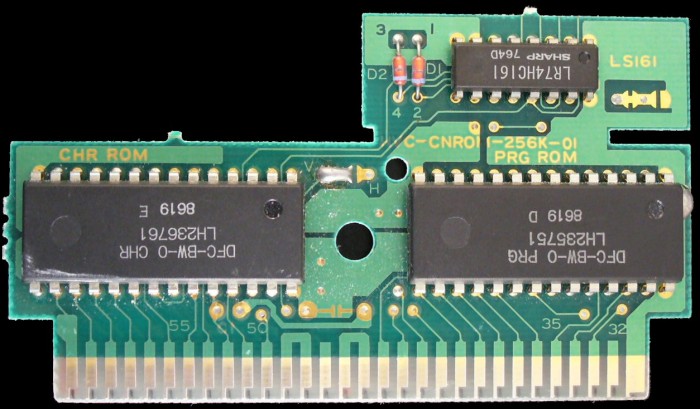

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8618 - 8619 (3) |
| Est First Run | May 1986 |
| PCB Class | HVC-CNROM+SECURITY |
| iNES Mapper | 185 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DFC-BW-0 PRG | 32 KB | 725D5CC4 | 3 |
| CHR0 | DFC-BW-0 CHR | 8 KB | 456DF683 | 3 |
| N/A | ROMs Combined | 40 KB | 74F0A89F | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 51 | Mask ROM 32 KB | DIP-28 | 8619 D | 8619 | |
| CHR ROM | Sharp | LH2367 61 | Mask ROM 8 KB | DIP-28 | 8619 E | 8619 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 64D 7 | 8618 |
