Release Info
| Catalog ID | TKS-S2 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 25, 1986 |
| Publisher | Tokyo Shoseki |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

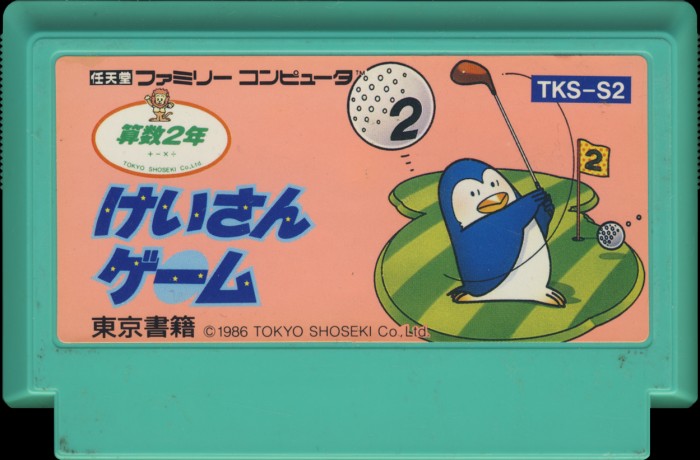

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Spring Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-S2 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

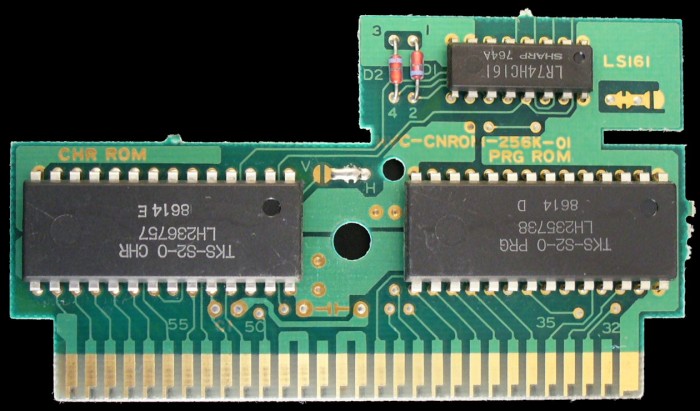

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8615 |
| Est First Run | April 1986 |
| PCB Class | HVC-CNROM+SECURITY |
| iNES Mapper | 185 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TKS-S2-0 PRG | 32 KB | DAADEBFA | 1 |
| CHR0 | TKS-S2-0 CHR | 8 KB | BC6C9693 | 1 |
| N/A | ROMs Combined | 40 KB | 892CBBC2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 38 | Mask ROM 32 KB | DIP-28 | 8614 D | 8614 | |
| CHR ROM | Sharp | LH2367 57 | Mask ROM 8 KB | DIP-28 | 8614 E | 8614 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 64A 7 | 8615 |
