Release Info
| Catalog ID | NES-W2-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1990 |
| Publisher | Acclaim |
| Developer | Technos |
| Players | 2 |
| Peripherals | NES Controller |

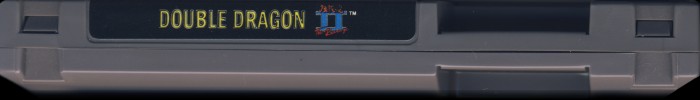

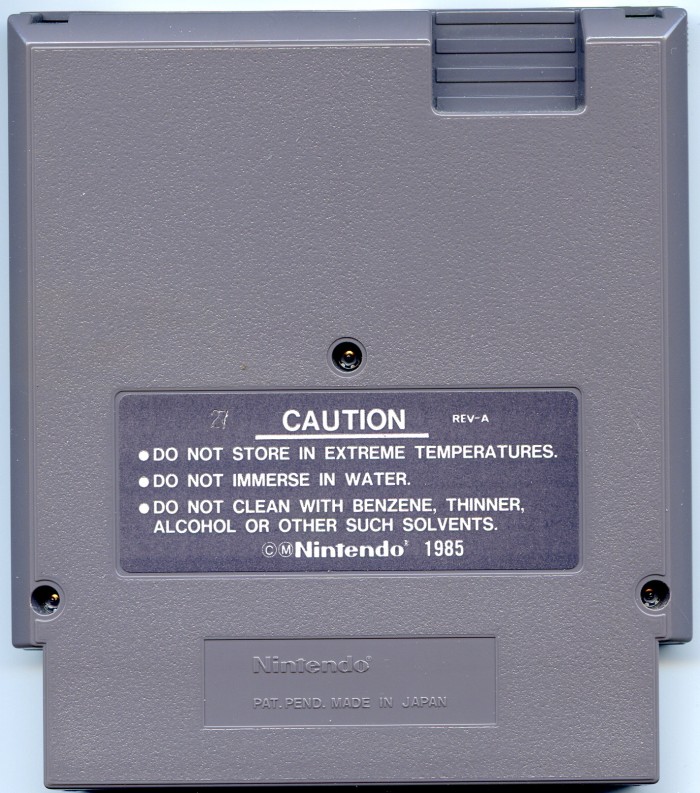

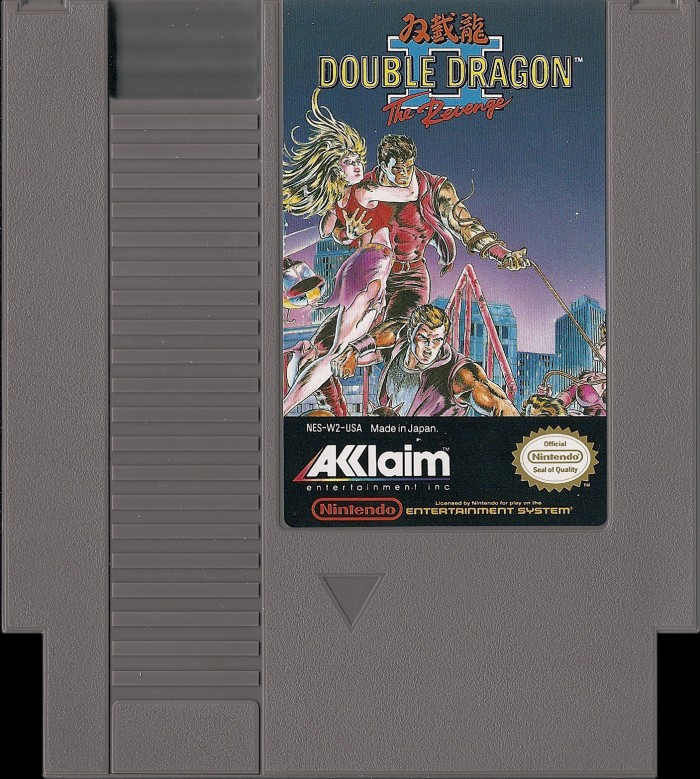

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-W2-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

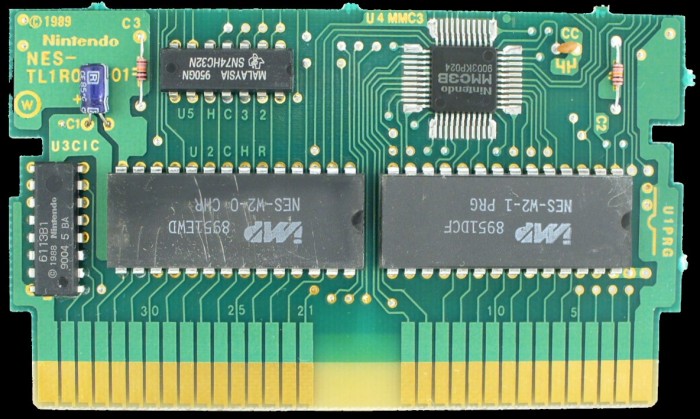

PCB Properties
| Name | NES-TL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8948 - 9014 (3) |
| Est First Run | December 1989 |
| PCB Class | NES-TL1ROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-W2-1 PRG | 128 KB | 7BE93173 | 2 |
| CHR0 | NES-W2-0 CHR | 128 KB | E0B9A5FF | 8 |
| N/A | ROMs Combined | 256 KB | 8A640AEF | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | IMP | IM231002 | Mask ROM 128 KB | DIP-28 | 8951 DCF | 8951 | |
| U2 CHR | IMP | IM231002 | Mask ROM 128 KB | DIP-28 | 8951 EWD | 8951 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9004 5 BA | 9004 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9003 KP024 | 9003 | |
| U5 HC32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 950 GN | 8950 |
